Frequenzmesser WEN (BN435)
Rohde & Schwarz, PTE; München
- Country
- Germany
- Manufacturer / Brand
- Rohde & Schwarz, PTE; München
- Year
- 1958–1965
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 113256
-
- alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Gerät steht im "Das Radiomuseum", Cham
D_Rohde&Schwarz_Frequenzmesser WEN (BN435)

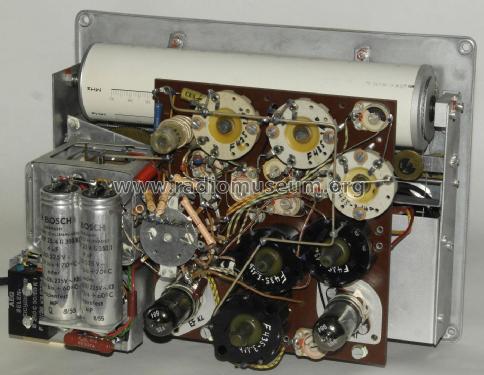

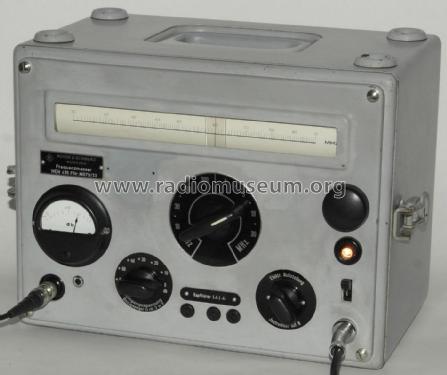

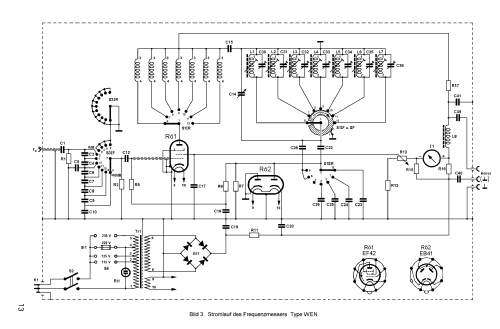

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 115; 125; 220; 235 Volt
- Loudspeaker
- - only for Earphone!
- Material
- Metal case
- from Radiomuseum.org
- Model: Frequenzmesser WEN - Rohde & Schwarz, PTE; München
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 285 x 227 x 226 mm / 11.2 x 8.9 x 8.9 inch

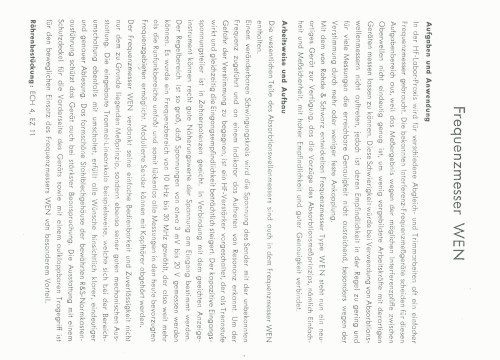

- Notes
- Frequenzbereich: 10 kHz bis 30 MHz unterteilt in 7 Teilbereiche, Fehlergrenze ± 0,5 %; erforderliche Eingangsspannung für 0-dB-Anzeige: 1···15 mV, je nach Bereich; max. Eingangsspannung: etwa 20 V; Eingangskapazität: etwa 15 pF. Telefonbuchsen für Kopfhörer zum Abhören der Modulation.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Price in first year of sale
- 395.00 DM
- Source of data
- - - Data from my own collection
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
