• Country
• United States of America (USA)

• Manufacturer / Brand
• Western Auto Supply Co. (Truetone); Kansas City (MO)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 272193

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3Q4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 1,5 & 67,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Truetone D3600A - Western Auto Supply Co.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• The Truetone D3600A is a battery operated 4 tube portable BC band receiver.  The frequency tuning range is 535-1630 kHz.  Uses Qty(2) 1.5V batteries (In parallel) and Qty(1) 67.5V battery.

• Mentioned in

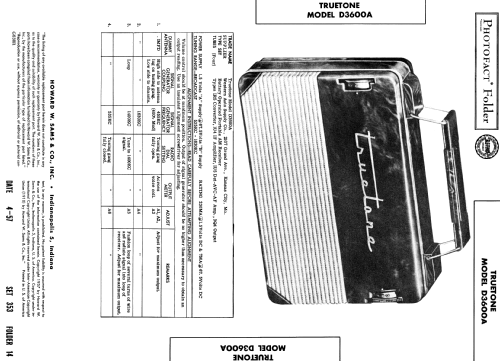

• Photofact Folder, Howard W. SAMS (Set 353, Folder 14 Date 4-57)
