For model Truetone D-1845, Western Auto Supply Co. (Truetone); Kansas City (MO):
Truetone Model D 1845 with Oak Model 6666 Record Changer

Country:  United States of America (USA)
Manufacturer / Brand:  Western Auto Supply Co. (Truetone); Kansas City (MO)
Year: 1947/1948 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SK7 6SF7 6SJ7 6V6GT 6X5GT
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.4 inch = 18.8 cm
Power out
from Radiomuseum.org Model: Truetone D-1845 - Western Auto Supply Co.
Material Wooden case
Shape Console with any shape - in general
Notes The Western Auto Supply Model Truetone D-1845 is an AC operated Phono-Radio Two Band Superheterodyne Receiver with Loop Antenna. Thechanger used is an Oak model 6666.
Source of data Pre-War Consoles; Stein, 2000

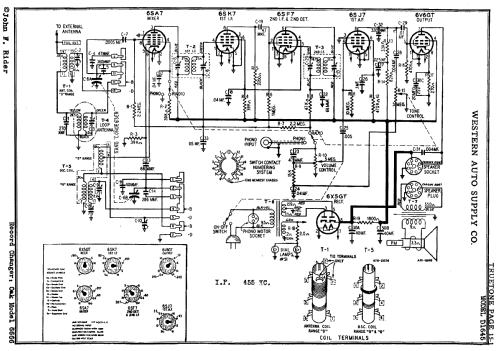

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-48, Set 31, Folder 481-31)

Model page created by Egon Penker. See "Data change" for further contributors.
