Radiodyne WC19G 125$
Western Coil & Electrical Co.; Racine, WI
- Country
- United States of America (USA)
- Manufacturer / Brand
- Western Coil & Electrical Co.; Racine, WI
- Year
- 1926
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 66063
-
- Brand: Radiodyne
- Number of Tubes
- 6
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiodyne WC19G [125$] - Western Coil & Electrical Co.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 24 x 11.5 x 15 inch / 610 x 292 x 381 mm
- Notes
-

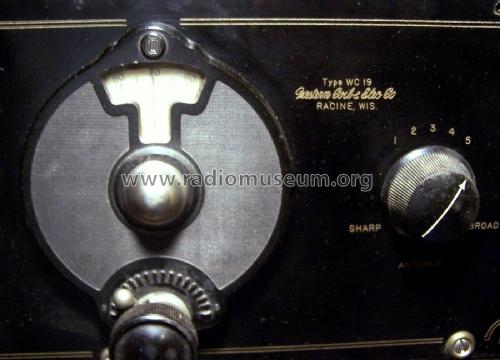

Two dials (primary tuning control knobs).
Western Coil & Electric Mfg Co ... RADIODYNE WC19G DELUXE. The "G" suffix indicated their top of the line deluxe wood cabinet
Western Coil used the 19C chassis in various cabinet styles. Available cabinet styles included a compact wooden cabinet with a split hinged top, a couple of variations of slightly larger wooden cabinets with fully hinged tops (types A and E), a deluxe (ornamental) wooden cabinet (type G), and a console (type C).
- Price in first year of sale
- 125.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
