540-AW Hornless Loudspeaker

540-AW Hornless Loudspeaker; Western Electric (ID = 718896) Speaker-P 540-AW Hornless Loudspeaker; Western Electric (ID = 718897) Speaker-P
540-AW Hornless Loudspeaker; Western Electric (ID = 718898) Speaker-P 540-AW Hornless Loudspeaker; Western Electric (ID = 718899) Speaker-P
540-AW Hornless Loudspeaker; Western Electric (ID = 1207118) Speaker-P 540-AW Hornless Loudspeaker; Western Electric (ID = 1207119) Speaker-P
540-AW Hornless Loudspeaker; Western Electric (ID = 1207120) Speaker-P 540-AW Hornless Loudspeaker; Western Electric (ID = 1207121) Speaker-P
540-AW Hornless Loudspeaker; Western Electric (ID = 1207122) Speaker-P 540-AW Hornless Loudspeaker; Western Electric (ID = 1288916) Speaker-P
Use red slider bar for more.
540-AW Hornless Loudspeaker; Western Electric (ID = 718896) Speaker-P

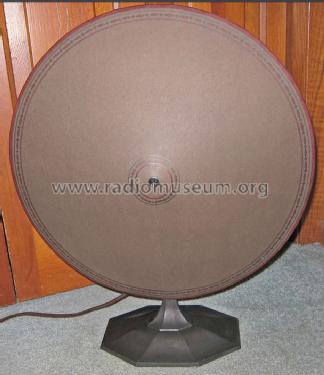

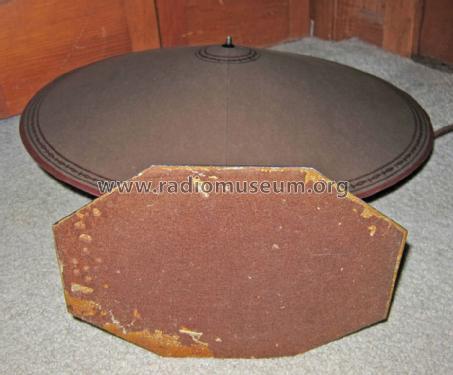

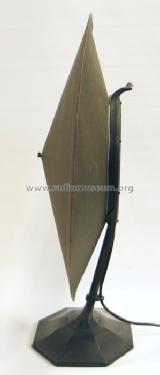

Western Electric: 540-AW Hornless Loudspeaker [Speaker-P] ID = 718896 589x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 540-AW Hornless Loudspeaker, Western Electric Company Inc.; New York (NY):
Cone not original; cone restoration by Buford Chidester, 1997, according to original design and pattern.

Country:  United States of America (USA)
Manufacturer / Brand:  Western Electric Company Inc.; New York (NY)
Year: 1924 Type: Loudspeaker (speaker or headphone)
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: 540-AW Hornless Loudspeaker - Western Electric Company Inc.;
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 18 x 21 x 6.5 inch / 457 x 533 x 165 mm
Notes Dual (front and rear) cone speaker with 18 inch diameter. Balanced armature driver with U-magnet.
Price in first year of sale 35.00 $
Collectors' prices
Source of data Classic Cones, Chidester; 2001
Mentioned in Radio Manufacturers of the 1920s, Vol 3, Alan Douglas
Literature/Schematics (2) Radio Broadcast, Dec. 1924, p. 304

Model page created by Konrad Birkner. See "Data change" for further contributors.
