H-581T5 Ch= V-2259-3

Image ID = 514902 for Westinghouse El. & H-581T5 Ch= V-2259-3

Image ID = 514903 for Westinghouse El. & H-581T5 Ch= V-2259-3

Image ID = 514904 for Westinghouse El. & H-581T5 Ch= V-2259-3

Image ID = 514905 for Westinghouse El. & H-581T5 Ch= V-2259-3
Image ID = 514906 for Westinghouse El. & H-581T5 Ch= V-2259-3
Image ID = 514906 for Westinghouse El. & H-581T5 Ch= V-2259-3
Westinghouse El. & : H-581T5 Ch= V-2259-3 [Radio] ID = 514906 600x473
Sams Photofact Folders

Country: United States of America (USA) Manufacturer/Brand: Westinghouse El. & Mfg. Co. - see also Canadian W.
Year: 1957 Type: Radio or Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Principle Super-Heterodyne (Super in general); IF-Freq. 455 kHz; 2 AF-stage(s)
Tuned circuits 6 AM circuit(s);
Wave bands Broadcast only (MW).
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker/pwr.out Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.2 cm = 4 inch
from Radiomuseum.org Model: H-581T5 Ch= V-2259-3
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes Color=Ivory

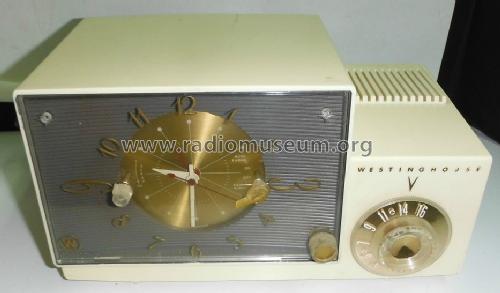

The Westinghouse Model H-581T5 is an AC Operated AM Receiver with Electric Clock.

This model was suggested by Egon Penker.
