H-760T6 Ch= V-2410-2

H-760T6 Ch= V-2410-2; Westinghouse El. & (ID = 1199320) Radio

H-760T6 Ch= V-2410-2; Westinghouse El. & (ID = 1199321) Radio

H-760T6 Ch= V-2410-2; Westinghouse El. & (ID = 1199322) Radio

H-760T6 Ch= V-2410-2; Westinghouse El. & (ID = 1199323) Radio

H-760T6 Ch= V-2410-2; Westinghouse El. & (ID = 1199324) Radio

H-760T6 Ch= V-2410-2; Westinghouse El. & (ID = 149510) Radio
H-760T6 Ch= V-2410-2; Westinghouse El. & (ID = 1199319) Radio H-760T6 Ch= V-2410-2; Westinghouse El. & (ID = 655195) Radio
Use red slider bar for more.
H-760T6 Ch= V-2410-2; Westinghouse El. & (ID = 1199319) Radio

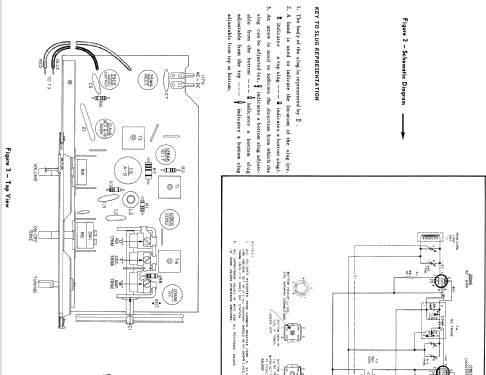

Westinghouse El. &: H-760T6 Ch= V-2410-2 [Radio] ID = 1199319 887x635
Select picture or schematic to display from thumbnails on the right and click for download.
For model H-760T6 Ch= V-2410-2, Westinghouse El. & Mfg. Co. - see also Canadian W.:
Picture from Westinghouse datasheet

Country:  United States of America (USA)
Manufacturer / Brand:  Westinghouse El. & Mfg. Co. - see also Canadian W.
alternative name

Westinghouse El. Int.
Year: 1960 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 12BA6 12BE6 12BA6 12AV6 35C5 35W4
Principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 0.9 W (unknown quality)
from Radiomuseum.org Model: H-760T6 Ch= V-2410-2 - Westinghouse El. & Mfg. Co. -
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 15 x 8 x 5 inch / 381 x 203 x 127 mm
Notes The Westinghouse model H-760T6 is a 6 tube AM radio. AM Tuning Range: 540 to 1600 kHz. Has Qty(1) PM 6" speaker. Cabinet color is Charcoal/White. Westinghouse model H-759T6 uses the same chassis and schematic, the difference being the cabinet color.
Circuit diagram reference Beitman Radio Diagrams Vol. 21, 1961
Literature/Schematics (1) - - Manufacturers Literature (Westinghouse Datasheet RA5017)

Model page created by Egon Penker. See "Data change" for further contributors.
