Little Jewel Refrigerator H-125

• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1945–1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66211

• • alternative name: Westinghouse El. Int.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SF7 12SJ7 35A5 or 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm

• Power out
• 0.85 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

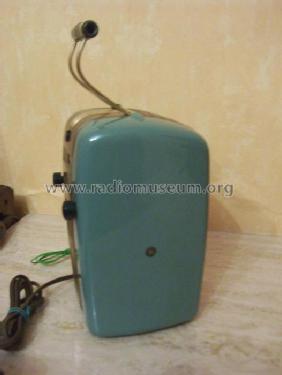

• Model: Little Jewel Refrigerator H-125 - Westinghouse El. & Mfg. Co. -

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 150 x 240 x 150 mm / 5.9 x 9.4 x 5.9 inch

• Notes

• Piccola radio a forma di frigorifero con parte centrale in metallo e laterali in bachelite verniciata.

  They were given away as a promotional item when you bought one of their refrigerators.

  Painted bakelite. Available in Ivory, Pastel-Green or Blue, all with Gold.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 3, Folder 19 date 8-46)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (August 1947 page 22, 23.)

• Literature/Schematics (3)
• Table Top Radios Vol. 1 Stein 98 (page 163.)

• Literature/Schematics (4)
• -- Original prospect or advert (The Westinghouse Folder for 1947.)
