Industrial Circuit Tester 785 Type 4

Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 664859) Equipment Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 664860) Equipment
Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 664861) Equipment Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 955053) Equipment
Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 955054) Equipment Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 1012254) Equipment
Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 1012255) Equipment Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 1012256) Equipment
Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 1129389) Equipment Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 1147097) Equipment
Use red slider bar for more.
Industrial Circuit Tester 785 Type 4; Weston Electrical (ID = 664859) Equipment
Weston Electrical: Industrial Circuit Tester 785 Type 4 [Equipment] ID = 664859 637x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Industrial Circuit Tester 785 Type 4, Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)
alternative name

Jewell
Year: 1942–1950 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / D: 1 x 1.5 & (Burgess 5540) plus 2 x 7.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Industrial Circuit Tester 785 Type 4 - Weston Electrical Instrument
Material Various materials
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 335 x 235 x 115 mm / 13.2 x 9.3 x 4.5 inch
Notes

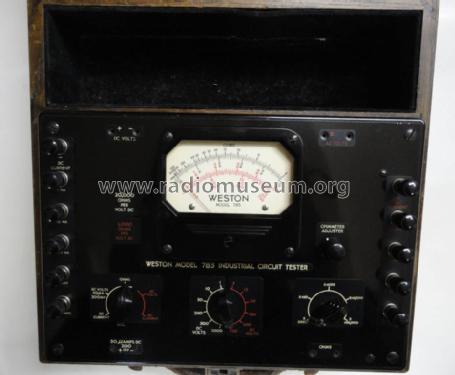

Instrument fixed in a solid oak case, panel of tester made of plain bakelite. For operating it uses 2 x Burgess 7.5V battery No. 5540 plus 1 x "D" size battery 1.5V.

Versatile tester for trouble shooting. Provides voltage, current and resistance ranges for checking motor and control circuits, lighting circuits, sensitive relay circuits, electronic circuits, etc. ( D-C sensitivity 20,000 Ohms per Volt )

0 to 1,000 Volts DC at 20,000 Ω/Volt
0 to 750 Volts AC at 1,000 Ω/Volt
0 to 10 Amps DC
0 to 10 Amps AC
0 to 900 MΩ

Type 4 is identical to Type 3, with the exception that the instrument of the latter features a complete metal base and can be lifted out of the wooden box.





Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Mentioned in Radio Retailing (Radio & Television R.) (July 1946 page 143. September 1946 page 109.)

Model page created by Martin Bösch. See "Data change" for further contributors.
