• Year
  • 1927
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 243847
    • Brand: Oriole

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown); something special ? Please give information (notes)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 90; 4.5; 6 Volt
  • Material
  • Wooden case
  • from Radiomuseum.org

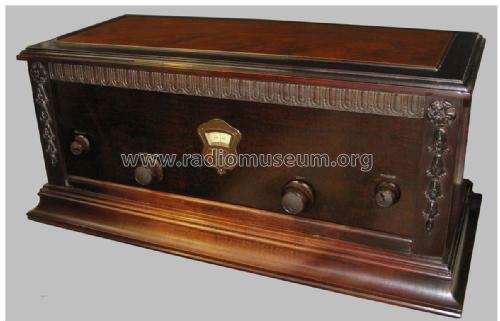

  • Model: OrioleTrinum 100 Receiver - W-K W.K. Electric Co. Winther-
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 26 x 11 x 12.5 inch / 660 x 279 x 318 mm
  • Notes
  • One dial. Shielded receiver. Mentioned in Radio Broadcast.

    This radio features 5 staged of RF amplification with 5 cathode followers to guaranty freedom from oscillations and very little interaction in the tuning between stages. The very predictable tuning of each stage makes it possible to mechanically link the tuning of all the stages.

  • Net weight (2.2 lb = 1 kg)
  • 32 lb (32 lb 0 oz) / 14.528 kg
  • Price in first year of sale
  • 185.00 $
  • Source of data
  • -- Collector info (Sammler)
  • Mentioned in
  • Radio Broadcast, Vol 12 1927
  Oriole Radio Receivers, Instructions for models 100, 101, 104 2023 KB
  • Documents regarding this model

 Collections | Museums | Literature

 Forum

Forum contributions about this model: W-K W.K. Electric Co: OrioleTrinum 100 Receiver

Threads: 2 | Posts: 2

5 Cathode Follower RF stages with 5-tank regeneration

Fellow Radiophiles,

Robert Lozier first found this set in original condition and performed a masterful restoration. Robert reported his restoration efforts, measurements and evaluation of the set in another post. The hand traced schematic diagram and some of the photos in this post were done by Robert.

This set is now in my collection. I am equally happy to have this set in my collection, as I am to have a masterful Lozier restoration! The photo shows the small 1.5" wide metal label that Robert affixed discretely on the lower right corner inside the lid.

I will share with you my findings and measurements of the Oriole Model 100. The Oriole model 100 with five Trinum cathode-follower RF stages marks the top-of-the line for Winther-Kenosha (W-K). This model employs 6 equally tuned RF step-up tanks with 5 cathode follower stages coupling each step-up tank to the next, and eventually to the grid leak detector. W-K called their special cathode follower RF stage, the Trinum circuit. Their cathode-follower RF amplifier circuit received a patent on January 29th, 1929, although these sets were in production only from 1924 to 1927.

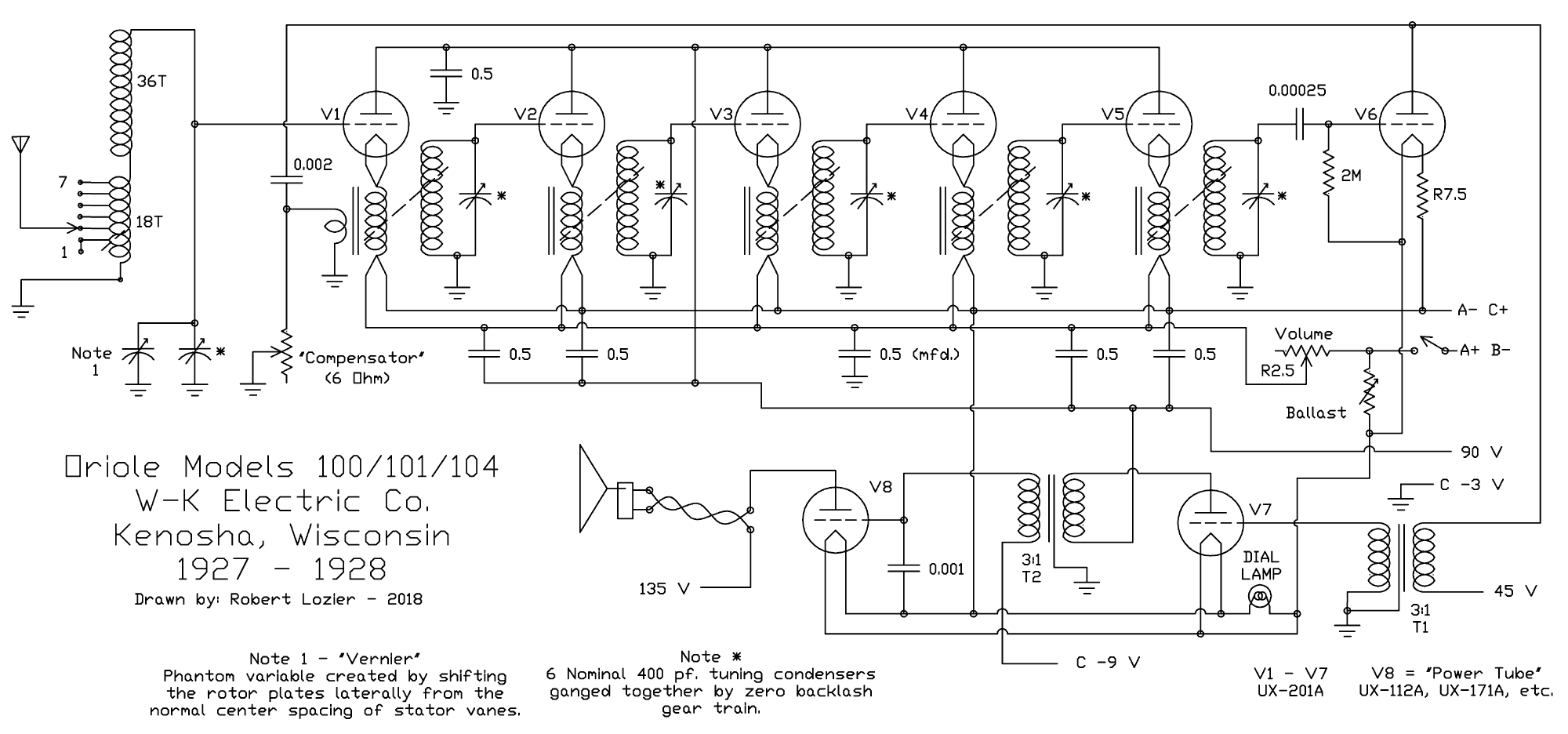

The following hand traced schematic shows all the plates of the cathode follower stages tied to the 90V B battery supply. The signal current is amplified from grid to cathode with power gain and the step-up tuned transformers provided the voltage gain to drive the grid of the next stage.

As reported earlier [1, 2, 3] for other W-K sets, the triode cathode-follower RF amplifier with step-up RF transformer offered oscillation-proof voltage gain up to 5x per stage, where conventional common cathode (a. k. a. grounded cathode) were very prone to oscillation at this level or even lower levels of voltage gain. These conventional grounded cathode amplifiers may have used neutralization to cancel the Miller plate-grid capacitance feedback, that would cause oscillations or may have used degenerative schemes to keep the unpredictable stage gain under control bellow the oscillation point. A comparison of plate loading vs cathode loading of tank circuits is available in this post about cathode reaction. Jochen Bauer gives a rigorous mathematical analysis of the effect of plate-grid feedback Miller capacitance in conventional grounded cathode stages, which can also be used purposely to increase regeneration and consequently gain.

The idea for a cathode follower design was also considered in England by Johnston, but the schematic diagrams that survive show that these designs were not capable of voltage gain due to the lack of step-up RF transformers from the cathode of one stage to the grid of the next stage. Only external overall regeneration would increase the set voltage gain, but at the risk of inducing oscillations. These designs offered one way to use a sequence of RF tank circuits to increase selectivity with negligible interaction between the tanks. This lack of voltage gain for each cathode-follower stage in these designs highlights the importance of the step-up transformer with the bifilar primary in W-K's invention.

RF Transformers in continuous development during the life of the W-K product line.

W-K had a relatively short production run of just a few years from 1924 to 1927. In the course of their production, they made several variants of their Trinum cathode-follower RF amplifier and employed different numbers of these stages in various sets. For example, the model 8 used just one RF stage, the model 7B used 3 RF stages and finally the model 100 presented here used 5 RF stages. All these RF stages use the Trinum Cathode-follower circuit for current gain and power gain with various configurations of step-up  loosely coupled tuned RF transformer for a net stage voltage gain between 2x and 5x. The transformer variants had different secondary coil types, including simple solenoids and basket weave, but all used a bifilar primary solenoid winding with a few turns.

Bifilar means two wires in parallel to make a tightly coupled pair of windings. At RF frequencies, these wires are shorted at one end by the 20Ω filament and at the other end by the battery, thus presenting an equivalent single primary winding as the RF load. Each of the two bifilar windings passes 5V from the battery to the filamentary cathode terminals to make the filament glow and emit electrons for the amplification process. This unique filament power arrangement made it possible to share the filament battery for any number of RF stages. At DC, each of the bifilar windings passes DC power to the filament with negligible resistance.

The model 100 has the further transformer variant in that the coil arrangement is in binocular style with solenoids placed adjacent to each other. The low Q=5 untuned primary has a smaller diameter and uses a laminated iron core. The tuned secondary has Q~85. The impedance seen by the cathode at the primary is always affected by resonance at the secondary. In The model 100 it is about 2kΩ at resonance and is higher than the cathode impedance 1/gm=1.25kΩ.

Four variants of the step-up RF transformer.

The first transformer in the following table is from the Model 8 with a single RF cathode follower stage and has the bifilar primary on the outside over a solenoid form with the tuned basket weave secondary inside it.

The three cathode follower RF stages in the model 71 use two tuned standard solenoid transformers with the bifilar primary inside and one untuned wideband high inductance laminated iron core transformer, also with a bifilar primary, driven by the third cathode follower stage.

The model 100 uses five identical cathode follower stages with step-up transformers arranged as binocular solenoid pairs. The narrower coil has the bifilar primary wound around a laminated iron core. All five secondaries in the binocular coils are gang-tuned simultaneously with a zero back-lash gear train.

These coil sets in the model 100 have the smallest footprint in the W-K line. Each of the 5 stages, including the coil, sits inside completely shielded identical aluminum compartments. The stable high impedance of the cathode follower stage and the quality of the construction of the coils and tuning capacitors, and very short grid connections keeps all 5 stages in very good alignment, despite the absence of any form of obvious alignment adjustment. I verified the alignment of each stage at the bottom, middle and top of the dial by inserting a ferrite stick followed by a shorted loop into each coil to see if the alignment could be improved. (This is an old technique to check alignment. The ferrite stick increases inductance and the shorted loop decreases it. It works at any frequency because the inductance has the same nominal value at any frequency). To my delight, the alignment was excellent up to 1200kHz and both the ferrite stick and the shorted loop always detuned each tank! Above 1200kHz, a small trimmer capacitor in parallel with each stage capacitor could have improved the alignment on two of the stages.

Four variants of step-up transformer. The table rows indicate:

1-model, 2-stage gains, 3-step up voltage gain at resonance and 4-primary/secondary inductance.

Oriole Model 8          Oriole Model 71,        The Warwick Oriole Trinum Model 100
1 stage gain 3x 3 stage gains 5x, 2.3x, 2x 5 equal stage gains, 2.4x
Sec/Pri = 17x Sec/Pri = 13x, 37x, 2.3x  Sec/Pri = 5x
uH/uH = 230/3.7 uH/uH = 165/9, 172/21, 1600/255   uH/uH = 224uH/175u

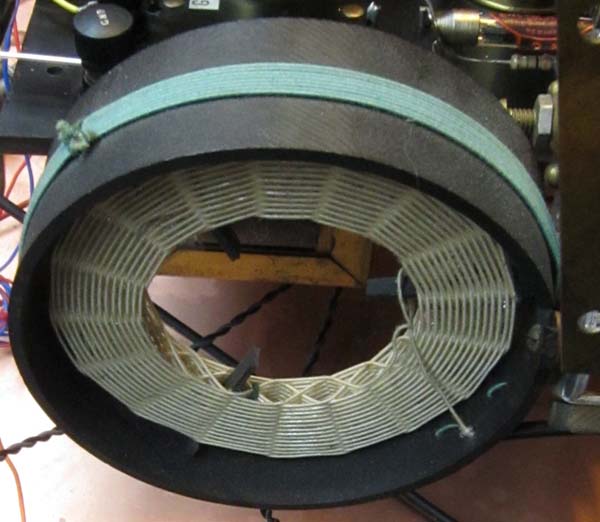

Basket weave secondary 2x Tuned solenoid, 1x iron core 5 pairs of Binocular coils

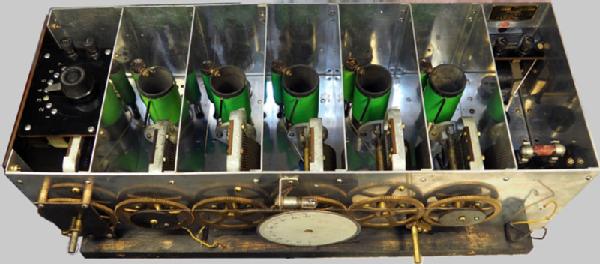

The binocular solenoid pairs in the last figure sit in individual compartments of the aluminum model 100 chassis. An aluminum lid covers the chassis except for the antenna matching switch on the left.

It is interesting to note from the wide range of step-up transformer designs, that the Trinum circuit underwent continuous development in the 1924-1927 period when these sets were designed and made. Even sets with similar tube count and layout used different transformers: Models 71 and 7D used solenoid transformers, while the models 77B and 200 used basket weave. The stage gains varied from 2x to 5x for the various designs, but even more interesting is that this was accomplished with transformers with step-up voltage ratios that varied from 2.3x to 37x. This points to very different design goals for each of these transformers.

For example, the 37x step-up ratio transformer for the second stage of the model 71 has the lowest impedance primary, which means it is the most loosely coupled of the designs, and therefor the most selective - loaded Q is nearly the same as the unloaded Q. The attenuation from the grid to the cathode at this stage is 1/16x for a combined stage gain of only 2.3x. Note that the step-up ratio of the tuned transformers is much higher at resonance and not directly related to the turns ratio. By contrast, The third stage of the model 71 uses an untuned laminated iron transformer where the step-up ratio is set by the turns ratio and is independent of frequency. It's input impedance is much higher than the 1.2kΩ source impedance of the follower cathode, so that the attenuation at the cathode from transformer loading is only 0.9x. But keep in mind that the mu=8 for the 01A triode also limits the unloaded cathode follower gain to 0.88 because of the internal tube resistance loading from cathode to plate, which is mu/gm=8/800uS=10kΩ.

Secondary QThe plot shows the measured Q of the tuned secondary using the BW/f0 measurement method in the red trace and Robert Lozier's measurement with his Heathkit QM-1 meter. My Bandwidth measurements were more likely to have random errors as I estimated the -3dB bandwith points on the oscilloscope frequency sweep.

The five identical Trinum cathode follower stages in the Model 100 have an impedance matched primary to the 1.2kΩ cathode impedance. This gives a 0.5x attenuation from grid to cathode, which combines with a step-up transformer ratio of 5x at resonance for a combined stage gain of 2.4X. This transformer is unique in the Oriole line with similar primary (175uH) and secondary (224uH) inductances. The untuned primary has much lower Q~5 than the tuned secondary Q~85, but the primary is driven by the 1.2kΩ cathode impedance, which lowers the loaded primary Q~5 to Q~2.5.The coupling is still pretty loose with a 0.1 coupling factor, so that the lossy primary does not reduce the Q of the secondary.

The variable ganged tuning capacitors

All five transformers in the model 100 are tuned with 400pF nominal variable capacitors. The capacitors are synchronized with a gear train that has a spring-loaded pulley between the 2nd and 6th tuning capacitors to eliminate mechanical backlash. The dial is mounted on the fourth variable capacitor shaft and is illuminated with a dial light, even though this is a battery set. The capacitor plates alternate rotational orientation on every other capacitor, because the gears on their shaft also rotate in opposite direction on every other shaft. As you turn the dial, you see the capacitors rotating out from the bottom alternating with caps that rotate out from the top.

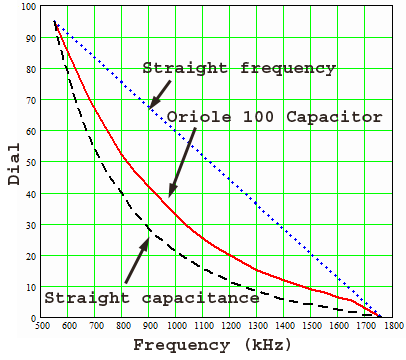

The very good alignment from 550kHz up to 1200kHz justifies the top notch zero-backlash gear arrangement, but one can wonder, if the product line continued, the gears might have been replaced with a single common shaft running through all 6 tuning capacitors. The gears are all fixed to each capacitor shaft with a set screw in the wheel bushing. If there is a misalignment here, the top of the band will first fall out of alignment due to the much higher percent capacitance variation for any degree of rotational misalignment when the plates are nearly fully rotated out. This also means that slight tweaks to the rotation of the caps, perhaps of one degree or less, which is about half a tick in the 0-100 dial, could have been used at the factory to get the entire band to track very well. Half a tick has little effect on the tuning on the low end of the band.

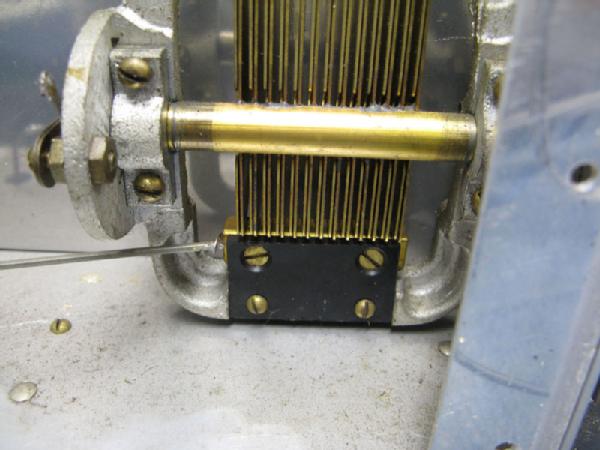

The special Vernier capacitance adjustment

One of the problems with external antennas of unknown length is that they will detune the first resonant tank unpredictably. A well impedance matched coupling will give the most sensitivity, but this tends to detune the antenna tank. The seven taps on the input tank assure the best possible match to the antenna for peak sensitivity. One widely used solution to the antenna detuning effect was to have separate tuning for the antenna tank. Later radios with their much more sensitive superhet circuits used a very loosely coupled antenna hookup that had a negligible effect in the input tank resonant frequency.

But this set devised a very clever adjustment scheme that can be set to work with one setting for the entire dial with very little or no further vernier adjustment. The first tuning capacitor differs slightly from the other capacitors in that it's shaft can be pulled in and out with the "Vernier" control on the front panel. In the photo, the shaft moves left-right. This adjustment raises or increases the capacitance by the same percentage for any position of the variable capacitor as opposed to adding a fixed level of capacitance, as standard bandspread fine-tuning capacitors do. Changing the size of the entire variable capacitor is electrically equivalent to changing the inductance of the tank because changing the inductance at the tank also affects all frequencies equally. Once the vernier and input antenna tap are set for a particular wire antenna, or even for a loop connection to the front end tank, there is little need to touch the vernier as you tune stations along the dial. This realizes the goal of single knob tuning pretty closely.

Sets that offer an explicit Loop antenna connection usually swap out the first tank coil for the loop. In this set, my external loop antenna with 89uH inductance, worked with the antenna selector on the second highest tap #6. This tap #6 is at roughly 1/4 of the voltage at the top of the antenna tank. The vernier then gets the loop aligned with the rest of the set over the entire dial.

I have also achieved similar results with a 20 foot wire antenna, where selecting the correct antenna tank tap with an initial adjustment of the "Vernier" control produced nearly perfect alignment throughout the band. The user manual that came with the Oriole 100 suggested what tap to use, given the antenna lenght.

A further characteristic of the "Vernier" control is that it works very similarly throughout the tuning band. This is in contrast with standard fine tuning bandspread capacitors that are very sensitive at the top of the band, but hardly do anything at the bottom of the band.

Wide band tuning up to 1.75MHz

The cathode follower stage input grids have particularly low and predictable capacitance loading on the tank, so that the top tuning frequency reaches 1.75MHz. This capacitance is on the order of 10-12pF, which is dominated by 8pF from grid to plate of each triode cathode follower. This predictable low capacitance is essential for the quality of the frequency tracking between the 5 RF cathode follower stages. Many contemporary sets struggled to reach 1.5MHz. But there is significant crowding of frequencies at the top of the dial. The plot shows about 3x thighter frequency spacing at 1.5Mhz as compared to 700kHz in the red trace. The ideal straight line frequency shown in the blue trace uses capacitor plates that are specially shaped to linearize the inversion and square root in the resonant frequency formula: f0=1/(2*π*sqrt(L*C)). The off-center mounting of the semicircular capacitor plates on the shaft offers some improvement shown in the measured red trace, away from straight capacitance variation shown in the black trace with the shaft centered on the straight plate edge. Capacitor plates that are shaped to give evenly spaced frequency on the dial, shown in the blue trace, have longer narrower plates and the shaft is mounted near the corner of the straight edge of the plates, which makes them swing out much further. Robert Lozier points out in his article about this set that six straight frequency tracking capacitors with their long narrow plates would add 8 to 10 inches to the 26 inch cabinet width.

Modeling of the RF stages and Detector with simulation results

[click schematics and plots to enlarge]

The modeling of this set was done with the free simulator LTspice from Analog Devices (formerly from Linear Technology). Each tube is modeled with a transconductor with a nominal gm=800uS, which is the transconductance spec of the 01A tubes. The mu=8 for the 01A tubes was modeled with an output resistance of mu/gm=10kΩ. The individual interelectrode capacitances were entered from the data sheet as Cgk=3.1pF, Cpg=8.1pF, Cpk=2.2pF. This is only a small signal model. Previous experience modeling 1920's battery sets [1, 2, 3] has shown that the simulations for the overall set line up quite well with measured results, if the individual coil and tube models are first verified against measurement.

The RF Stage Step-up Transformers

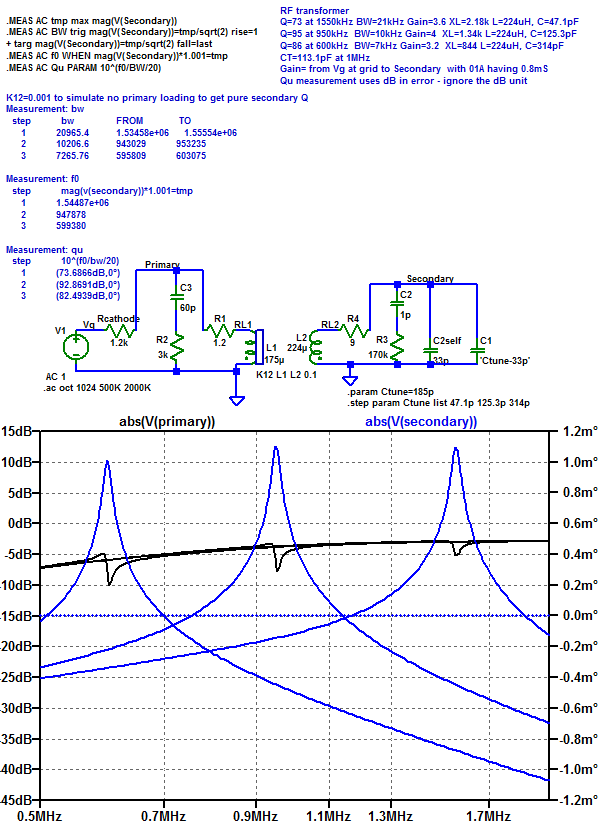

The Step-up transformers were measured with the power off to establish primary and secondary inductances and their coupling factor. The coupling factor K=0.1 was extracted from two inductance measurements of one winding with the other winding first open  and then shorted K=sqrt(1-Lshort/Lopen). The Q of each winding is modeled with resistor capacitor networks. The frequency response was measured at 3 frequencies near the top, middle and bottom of the band, at 1.5MHz, 950kHz, 600kHz, because the Q is not constant over the tuning range. The calculation of the resistances required iteration to match the simulated response to the measured response. First the series resistors were entered for the Q at 600kHz, then the series RC branches were added to lower the Q at 1.5MHz to match the high frequency response Q. When the RC branches were added, the series resistors were lowered slightly to keep the combined Q correct at 600kHz. Fortunately, this exercise was done only once for the 5 identical stages.

The Front end Antenna Tank

The tapped front end coil has 6 distinct taps but only one of these is used at a time.

In the physical coil, the 6 taps are all made on a solenoid coil that is wound over a basket weave coil. The solenoid is in series with the basket weave coil.

Modeling the front end tank can be done with a simple tapped inductor 6 times to account for each tap location in the winding.

The 6 series coil pair models all have the same total inductance, but different individual coil inductances, coupling factors and step-up ratios.

As was done with the step-up RF transformers, the losses that establish the Q over the frequency band were modeled first with a series resistor to account for the Q on the low end of the band where the resonant currents are highest. Then  a shunt resistor was added to account for the Q at the top of the band. The additional series RC was needed to further depress the Q at high frequencies to match the measured results. The depressed Q at high frequencies is likely caused by skin effect losses.

The plots show the frequency response at 600kHz, 1MHz and 1.5MHz for the top of the antenna tank that drives the grid of the first cathode follower in the green traces and for the antenna tap #6 in the magenta traces. The curves are 10dB apart and show the expected ~3x voltage ratio from tap #6 to the top of the tank.

It should be possible to model the antenna tank as a series combination of 7 inductors with mutual coupling factors for each adjacent pair of coils. However, I don't know the technique to do this correctly. A couple of quick trials soon showed that physically unrealizable coupling factors were reach and had to be discarded. Perhaps someone can find a reference for this technique.

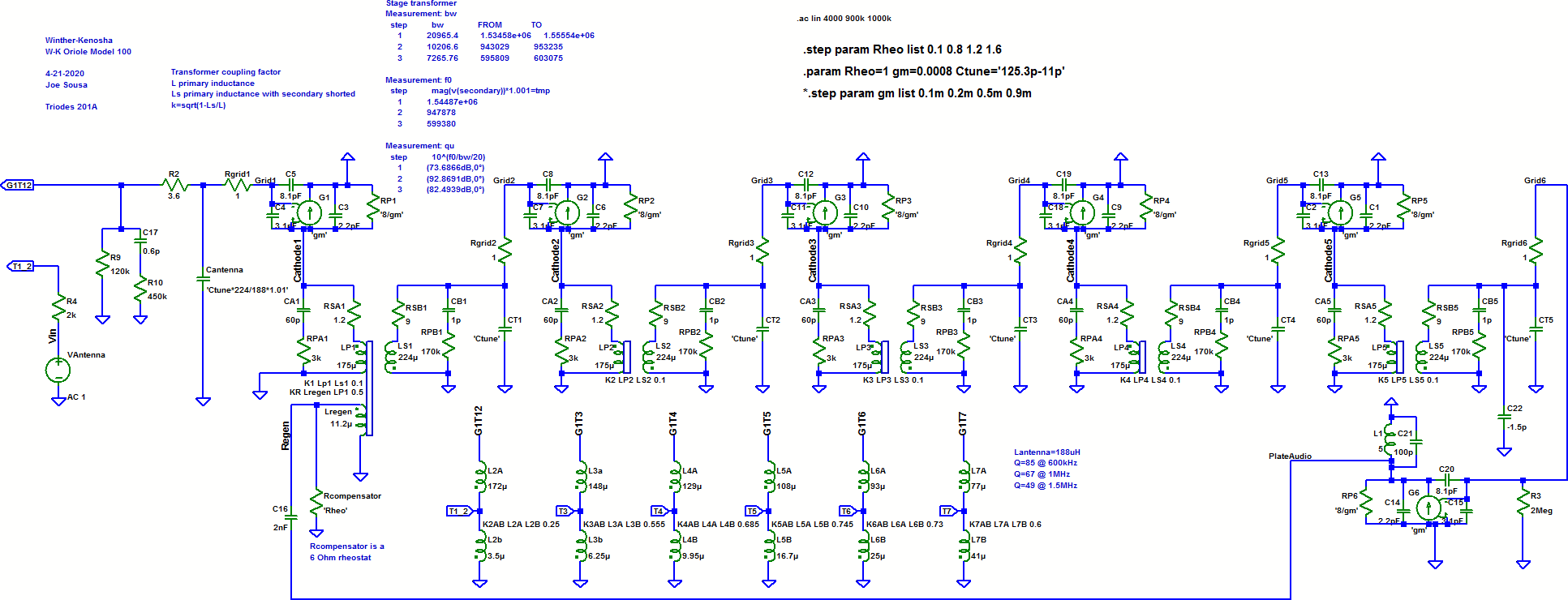

5 RF Cathode Follower Stages With Global Regeneration and Detector

The 6 coils modeled above are now combined below in 5 RF stages with the model for the 01A triode to create the small signal AC simulation schematic from the antenna tap to the detector stage. Note the addition of a regenerative feedback path from the G6 detector triode plate with the primary of the first audio transformer modeled as a 5H coil on the lower right, AC-coupled through C16=2nF to the regeneration control Rcompensator driving a small coil in the first step-up transformer on the lower left. C16 also serves as the audio filter of the grid-leak triode detector. C21=100pF models the self capacitance of the L1 audio transformer primary.

The regeneration control is labelled Compensator on the front panel. It is a 6 Ohm rheostat. The RF step-up transformer phase was verified as phase inverting and is denoted with phase dots on the primary and secondary coils for each RF stage. The regeneration is very effectively done over 5 tuned stages for greatly boosted selectivity without very much regeneration. See the comparison of standard single stage regeneration vs multi-stage regeneration near the end of the post on the Oriole model 71.

A further advantage of regeneration over so many stages is that the regeneration control has negligible detuning effect. This feature is pretty handy if you want to let the set break into oscillation and then retune slightly to kill the squeal and get oscillation lock with the incoming RF signal for very clean synchronous detection (I verified with a modern sensitive AM radio that no detectable squeal was radiated by this set). The fact that the detector at the end of the amplification chain is in the feedback path helps provide the necessary non-linearity for locking in the oscillator with the weakest possible antenna signals. Once the set is locked in, you can move the "Compensator" regeneration control in and out of oscillation without any squeals that would indicate detuning. As you increase regeneration, the audio bandwidth narrows while volume increases as expected, then after the set breaks into oscillation and locked synchronous detection, the volume drops again but with wider bandwidth and less distortion with self-oscillating synchronous detection.

The ability of the set to oscillate with the compensator control turned up is an indication of the good alignment of the coils. If the set is oscillating and you detune any of the coils with a ferrite stick or a shorted loop, the oscillation stops. The alignment of the set can thus be verified by ear with high regeneration just short of oscillation. Dip the ferrite stick and shorted loop alternately into the coils to listen for increased or lowered volume. The strong effect that alignment has on regeneration makes checking the alignment by ear nearly as effective as using an oscilloscope or AC RF voltmeter to monitor the output.

AC Simulation Results for 5 RF Cathode Follower Stages and Detector

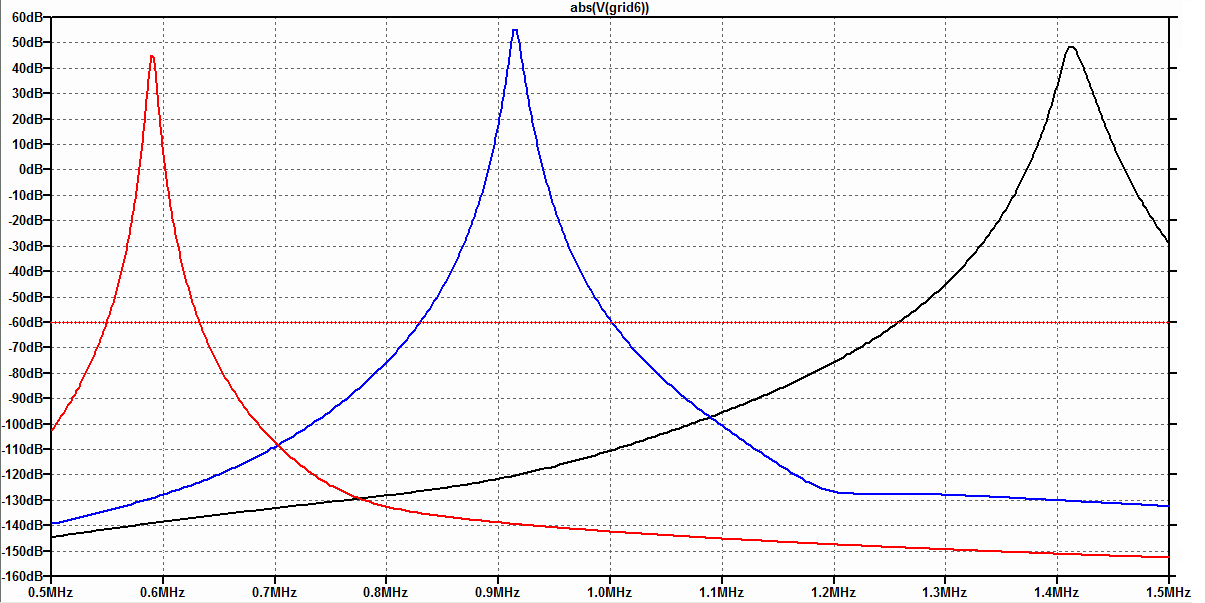

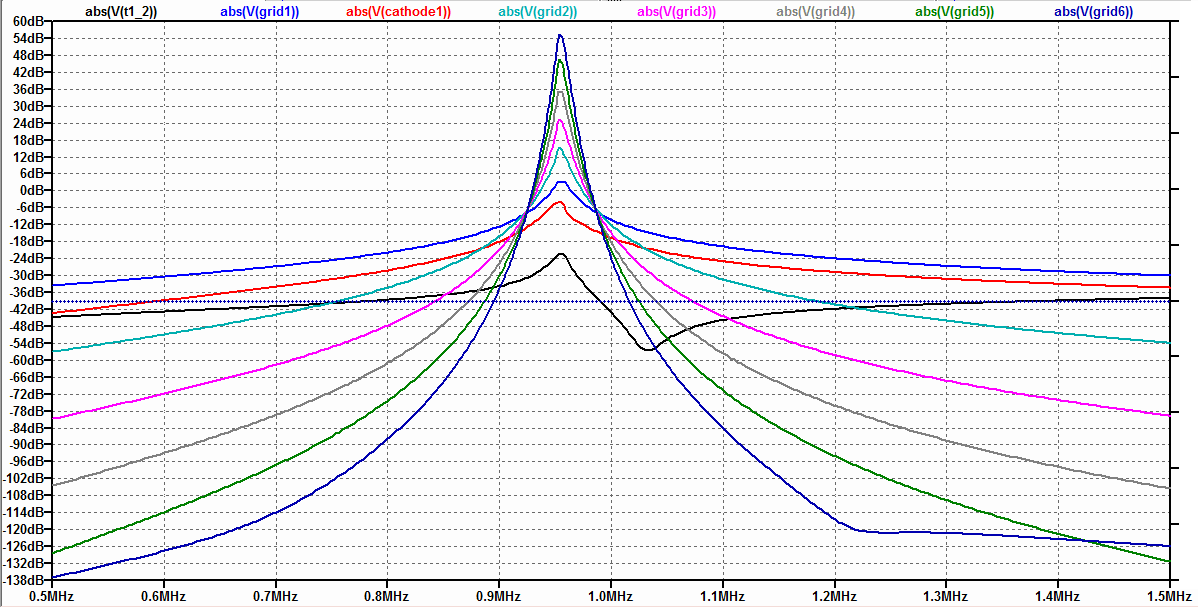

This plot shows the simulated set response from the lowest antenna tap T1_2 to the detector grid6 for 600kHz, 1MHz and 1.5MHz without any regeneration and with perfect alignment. Compare this plot with the plots above for each step-up RF transformer and for the antenna coil. The curves in this plot range about 200dB, while the curves in the plots above range about 50dB.

Stage gains

The plot shows the progress of a 1MHz signal from the lowest antenna tap in the black trace at -24dB to the detector grid6 in the top dark blue trace at 54dB. The Compensator regeneration control is set to zero. This is a comparison of voltages in dBV. Note that the single largest voltage gain is 27dB at the antenna tank from -24dB in the black trace to +3dB in the blue trace. The total RF stage gain is about 50dB, which is a bit higher than the measured gain of five 2.4x stages 2.4^5=80x or 38dB. Note the -6dB voltage drop from the first grid1 to the first cathode1. This shows fairly good impedance match from the cathode to the step-up transformer primary. Note also how the curves become progressively steeper with each gain stage, with the steepest curve at the detector grid6 in dark blue and the shallowest at the first cathode follower grid1 in medium blue. The antenna tap in the black curve is also much less selective than the top of the antenna tank at grid in the blue curve. This is a low Q connection to the external 2kΩ equivalent antenna source. I might have added a couple hundred pF to the source driving the tap to simulate a real antenna.

The following table shows gain measurements at 600kHz, 1MHz, 1.5MHz. The mid band measurement at 1MHz was done twice with the signal injected at the lowest tap T1_2 of the antenna tank and at the first cathode follower grid G1 at the top of the antenna tank. The Volume control that sets the filament voltage for the cathode was set to get 5.25V. The stage gains are reasonably close to the simulation results. Note that a small variation in stage gain has a cumulative effect on overall gain.

Dial Frequency In=T1_2 In=G1 Out=G6 Total Gain Stage Gain
85 600kHz   100mV 3V 30x=30dB 2.0x
30 1MHz 14mV   8V 672x=55dB
30 1MHz   100mV 7V 70x=37dB 2.3x
20 1.2MHz   100mV 9V 90x=39dB 2.5x
10 1.5MHz   100mV 9V 90x=39dB 2.5x

The Compensator

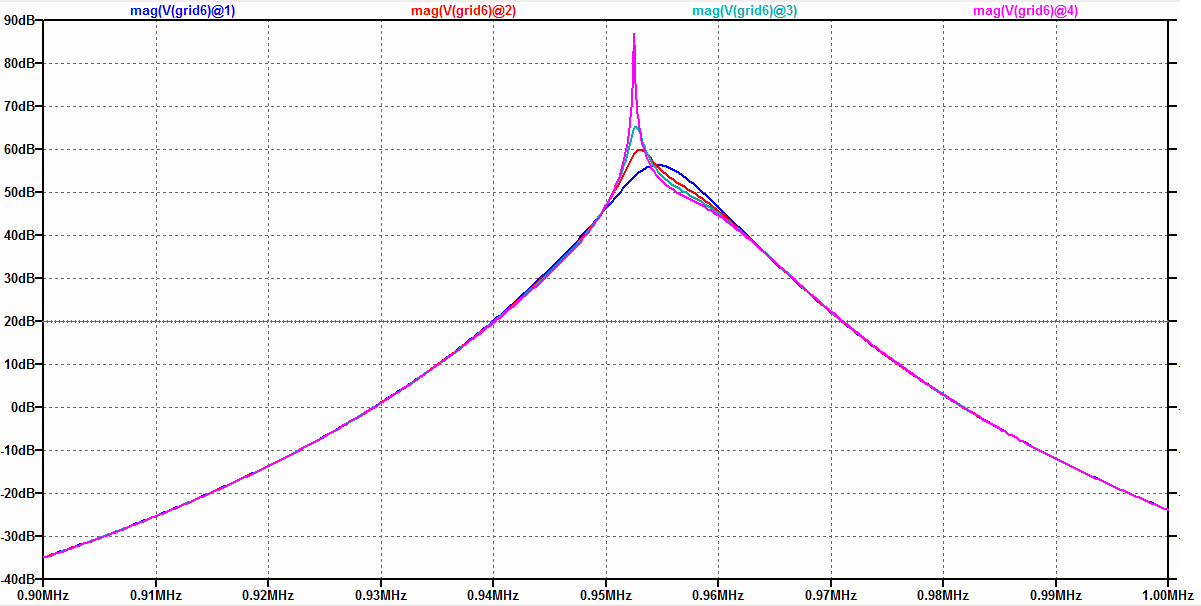

The compensator regeneration control. The plot shows the set response at 1MHz for various values of the Compensator regeneration rheostat. The blue curve with the soft peak has negligible regeneration with 0.1Ω at the Compensator rheostat. The next curves have 0.8Ω, 1.2Ω, 1.6Ω. The magenta curve with 1.6Ω shows signs of oscillation with the very sharp peak.

Note that increasing regeneration with higher values of Rcompensator would produce again softer peaks in the simulation result, but with oscillation present. There is mild detuning from no regeneration in the blue curve to the next red curve, but very little detuning for the remaining curves. When you tune to kill the frequency beat squeal for locked oscillation, you are using the magenta curve, so that reducing regeneration from that point does not cause detuning squeals and the slight detuning well below oscillation is not noticeable.

The power supply system

Supply Voltage Current
A+ 6.3V 2A
B+ RF, audio  90V 20mA
B+ detector 45V 1.5mA
B Audio Out 135V 10mA
C Audio In -3V 0
C Audio Out -9V 0

Refer to the traced schematic above for the power supply system. Note the extensive bypassing with 0.5uF capacitors between the 90V plate supply of the cathode followers and both bifilar RF transformer primary AC ground connections. These connect directly to A- and through the 2.5Ω Volume rheostat to A+. The A+/- terminals are fed with a conventional 6.3V Lead acid accumulator. It is not too surprising that the extensive RF bypass is necessary, given how little resistance is needed in the regeneration rheostat, which is only 6Ω, to drop the feedback current from the detector plate. The promise of the cathode follower architecture is to be free from oscillation and the bypass caps help full that goal. The original capacitors are leaky, but work well otherwise and Rober Lozier wisely left them in with his restoration. Perhaps one reason that each RF stage has an inverting  step-up RF transformer connection is to reduce the net RF plate current, by perhaps a factor of 2, as each RF stage cancels about half of the plate current of the previous stage.

The "Volume" control

The "Volume" control is the classic series filament rheostat with 2.5Ω and is also the ON/OFF control. The total filament current is 2A with the 8 tubes, and dial light. The volume control adjusts the filament voltage of the RF stages to 5V or less for reduced volume, so it should not be increased to the lowest resistance value that would apply 6.3V from the A battery to the 5V filaments, unless the external supply is 5V.

This kind of "Volume" control by reducing thermionic emission with reduced filament power and thus reduced transconductance (gm), was universal in battery sets of the 1920's. It saved a little bit of A battery power, and a significant amount of B+ power from 90V. The filament emission current drawn from the 90V B battery and the volume drop off steeply if the filament current is reduced to 80%. Another advantage of this method of volume control is that it could use the common low resistance rheostats of the 1920's and did not introduce distortion with strong local signals. Lowering the B+ supply voltage would introduce distortion with strong signals because of cutoff and would require high resistance potentiomenters that were not invented until the end of the 1920's [4]. High impedance attenuators that became universal as volume controls a decade later in superhet sets with AGC, had yet to be invented. In sets that had a tendency to oscillate, the filament power control was also one way to kill the oscillations.

The Detector

The detector tube has a further 7.5Ω filament ballast resistor to run the tube with reduced emission to sharpen it's detection knee. The grid leak resistor is tied to A+ to ensure a predictable grid current bias regardless of plate voltage or filament current. (Grounding the grid leak bias, as is done in some sets, makes the grid bias current a strong function of filament current and plate voltage because the bias current is established by the built-in potential that is generated by the space charge)

There are two C grid bias sources at -3V and -9V. The -3V source sets the grid bias for the cathode followers and audio preamp. Note that chassis ground and antenna ground are tied to the -3V bias source. Chassis ground and antenna ground are not the common point of the A, B and C batteries as is often the case for contemporary sets. The -9V C bias sets grid bias for the output audio power tube type 01A. A 71A power triode can also be used, but requires -27V of C bias.

The 2 Audio Stages

The 2 audio stages, the dial light and the detector tube get their filament current from the 6.3V A+ terminal through a common ballast resistor to get their filament voltage near 5V. All tube filaments are rated for 0.25A from 5V. The two audio transformers appear identical. The primary measures 620Ω and 5.1H, the secondary measures 4.8kΩ and 44H. The step-up voltage ratio is 3X. The output of the radio is the plate of the type 71A power tube. A load impedance of 3.5KΩ is recommended by the 71A tube data sheet to deliver 370mW of undistorted audio power with a 135V supply and a -27V bias. The -9V bias level is recommended for use with the lower power tube type 01A.

The second audio transformer has an open winding. Rober Lozier left the transformer in the set unconnected and put in a small NPN transistor amplifier [5, 6, 7] replacement. This amplifier has a voltage gain of 5.7, which is near typical audio step-up transformer turns ratios in the 1920s, but more than the 3x of the audio transformer in the set. The NPN amplifier works fine and is capable of 70Vp-p swings with a 90V supply One unfortunate aspect of the design is that the ground current of the NPN amplifier passes through the -9V C bias connection. Usually there is zero current drawn by the grid from the C- battery, but the NPN amplifier draws about 1mA through C-=-9V with the power on and about 20uA with the power off. A separate connection for the 470k grid bias resistor in the NPN amplifier would have eliminated any draw from the C- battery. This is not a fatal flaw; the little NPN amp works fine otherwise. On closer observation of the PCB, it is clear that an extra pin is available for the 470k bias resistor. The pin can be separated from the ground connection with a cuttable PCB trace at the lower right of the board. With this option, the current from the C-9V bias source drops to zero.

User manual

W-K put out a very thorough user's manual that includes clear set-up instructions as well as debug instructions. The manual can be downloaded on the main model page for this set.


Thank you Robert Lozier for the masterful restoration of this set. Analyzing and learning from this set gave me the opportunity to appreciate the overall production of radios from Winther-Kenosha with their excellent Trinum circuit with cathode follower RF amplifiers.

Regards,

-Joe

Attachments

Joe Sousa, 26.Aug.20

Weitere Posts (1) zu diesem Thema.

Fellow Radiophiles:

The following article was reprinted here by kind permission of Robert Lozier.


From the collection of Robert Lozier, Monroe, NC KD4HSH@CAROLINA.RR.COM

Oriole Model 100 - W-K Electric Co.
Kenosha, Wisconsin.
Circa: Spring of 1927

First of only two American broadcast receiver manufacturers to use Cathode Follower RF Amplifiers in their 1920s designs.

All Oriole radio designs used one or more stages of tuned radio frequency amplification. Except for their first Oriole branded radios, based on the Model 5 chassis, their uniqueness was in using a cathode follower RF amplifier scheme. This was coupled with clever applications of regeneration to maximize sensitivity. As with many 1920s makers of radios, they employed regeneration
in violation of patents controlled by the RCA. In the case of Oriole, this complicated their obtaining publicity about their ‘revolutionary’ Trinum circuitry. If they were to explain the circuit in articles in the popular press, the RCA patent department lawyers would surely quickly appear with cease and desist orders or threaten litigation.

Oriole Model 100 Description



This, apparently, final design recognizes the industry trend to sell the notion of ‘single dial tuning’. Sure enough all six tuning capacitors are ganged via large cut brass gears with a clever zerobacklash spring loading feature.

With six tuned circuits in individual compartments, the selectivity becomes quite good. So much so that the first tuned stage does not track well across the whole broadcast band. It is here that the designer had to fudge the claim to ‘single dial tuning’ by adding a mechanical method of vernier adjustment to the capacity of the first stage that appears to be unique. (It is fair to note that many other ‘single dial’ sets had some sort of control to peak the tuning of one or more stages. They were often labeled verniers, clairifiers or compensators.)





Here the unique approach to fine adjustment of this first tuned stage is made by a lateral shifting of the shaft that mounts the rotor plates; such that they are more or less centered between the fixed stator plates of the capacitor assembly! This method works very well!







With so many high Q stages, I wondered if it is necessary to stagger tune the stages to get acceptable bandwidth but informal listening tests don’t flag that as a problem. I did verify that the final RF amplifier was off frequency by alternately inserting a ferrite or a brass rod into one secondary coil at a time to shift the resonance point. To rotate the offending tuning shaft to the proper position can only be accomplished with the gear train fully exposed. After this correction, all the circuits were very close to resonance across the whole broadcast band.

There is an antenna matching circuit that works well for long wires of varying length. With the apparent rarity of this particular model it was indeed great luck that the 20 page user manual was still in the receiver cabinet. There is no mention of using this receiver with a loop antenna. And you can look at the schematic to see that a loop cannot be tuned by the first stage with the available antenna connections.

Working with this receiver soon demonstrates that it is much more selective at the high end of the broadcast band than many other TRF radios of the day. I was surprised to be able to tune-in early evening broadcasts from 1690, WPTX Lexington Park, MD; at a distance of 375 miles to a 10 kW station. I have 4 & 5 kW stations less than two miles away. With such high signal levels, they obliterate stations +/- 30 kHz. either side of 1060 and 1190 but otherwise the band is full of DX in the evenings.

The only improvement to high end tuning ease would be to substitute the straight-line capacity condensers with straight-line frequency units, BUT they would not fit in the same size compartments. I think the chassis would have to be 8 to 10 inches wider…..

Restoration Challenges

When found in the flea market at the annual conference of the AWA in Henrietta, NY in August 2017, the cabinet was in the usual state of many attic or dry basement stowaways. Finish flaking away beyond simple conservation techniques and loose cabinet joints mandating a complete knockdown and refinish. Otherwise not really dirty enough or rusty enough to be called ‘barn fresh’. Fortunately almost all chassis parts are aluminum or brass.

There are many radios of the 1920s that have ‘deal killer’ defects that keep many people from attempting to do accurate restorations. Atwater Kent horn speakers, Crosley ‘tool box’ radios, Kolster and FADA radios are notorious for their fractured ‘pot metal’ die cast parts. RCA Radiolas such as the Model 20, 25 & 28 have cabinets using laminate glue that lets-go far more easily than seen in other cabinet makers product of the day. The radios and horn speakers with crystalline lacquer finishes cannot be duplicated these days because of the hazardous chemicals and dangerous application techniques used. Certain dyes used on cotton, Rayon or silk fabrics of that period were very vulnerable to radical fading and the fibers suffer considerable loss of strength by light and atmospheric exposure.

The same can be said of battery cables and general wiring within early radio equipment. Many know of the colorful rubber covered hook-up wire used in Atwater Kent radios of the early 1930s. The insulation is now potato chip rigid and just as fragile.

Challenge #1

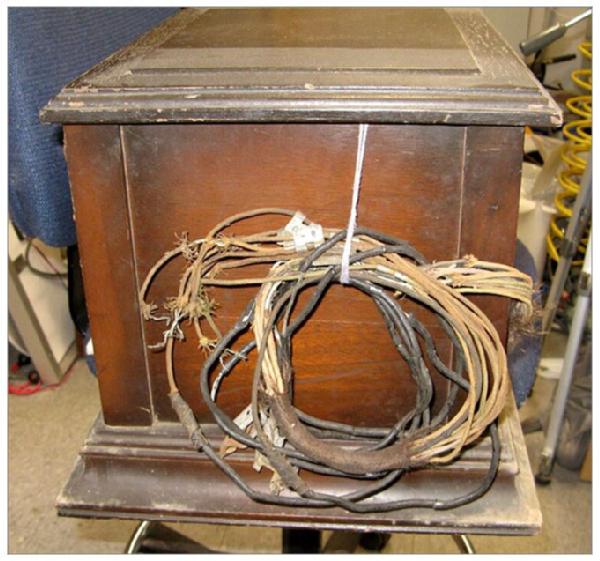

In this Oriole radio the ‘deal killer’ is the 9 conductor battery cable hard wired to a tag board under the chassis. The cable is so severely deteriorated, salvage is not possible. I made a replacement cable using techniques developed during the restoration of my second Swedish Radiola M55 of 1927 vintage.

The battery cable is a little shorter than I would have expected. But there is evidence that the cable was never longer because each wire has a metal ID tag attached just about where you would expect it to be. There are 7 – 20 gauge wires plus 2 – 16 gauge wires to service the filaments of the 8 type 01-A tubes.

Here I used 20 gauge cloth covered wire obtained from Radio Daze. This is the closest wire I’ve seen to replicate the original rubber insulated wire with color coded cotton over-braid. Unfortunately this reproduction wire uses common white PVC insulation under the colored braid that makes the wire much less flexible. I have found that it is possible to get black silicone rubber covered wire in these gauges. It is just a flexible as the original rubber insulated wire. I would gladly pay more to get reproduction wire made with Black silicone insulation.

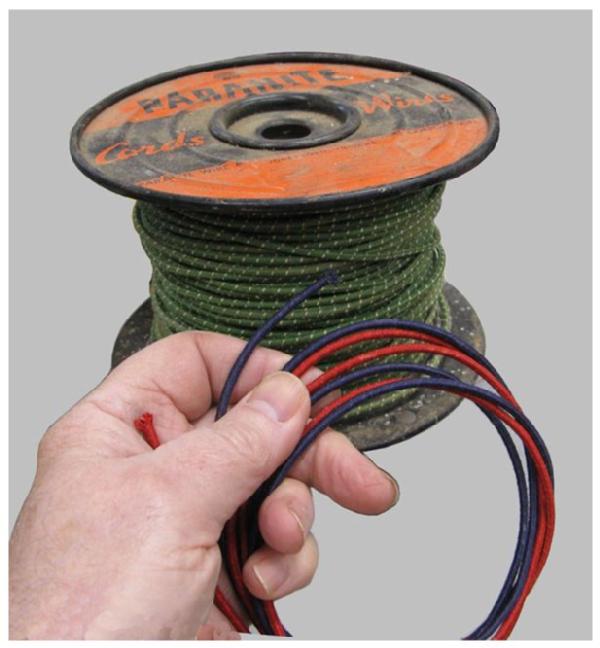

I have an old spool of 16 gauge stranded hookup wire that must date from the 1950s that has a green dyed braided covering. It is still in fine, flexible shape. I found that I could bleach the color from the wire braid and then use RIT brand dye to make Red and Black ‘A’ supply wires for my new cable.

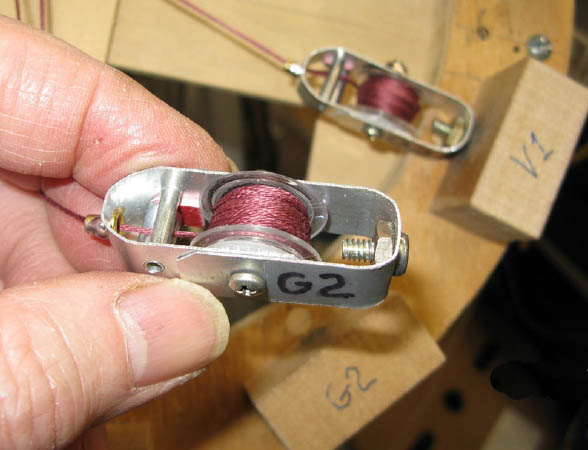

I engineered a braiding fixture with 16 shuttles, just like this 12 shuttle fixture I made for my Radiola M55 project. To permit braiding a jacket over this bundle of 9 wires, you have to add a filler strand of jute string. The filler necessary to form a smooth, slightly oval cable.

Once the bundle of wires is gathered into parallel alignment and secured by a spiral wrap of thread, it can be placed into the braiding fixture. In this case, about 36” of the bundle needs to have the braided jacket. To do the braiding takes about 8 hours work but the results are quite good. Good enough such that viewers are not likely to spend time questioning if the cable is not just ‘new old stock’ cable of the correct style.

Challenge #2

The Bakelite front panel was going to have to come off for proper cleaning of the chassis. Unfortunately the knobs were not attached with traditional set screws but with a music wire clip that is anchored in a small hole drilled crosswise in the brass shaft. What happens is that these clips rust and they will no longer slip the few thousandths required to permit the knob to slide off under any reasonable force.

Hours were spent on devising a method to remove the knobs in a way that would not crack them. It involved making tools to remove screws behind the panel that were never intended to be accessible unless the front panel was off the chassis.

Once these screws were detached, it provided just enough wiggle room to insert additional tools and supports that would permit sufficient force for clip extraction without breaking the knobs. It worked! But that task burned more than a full day of shop time.

With the front panel removed I could inspect the tuning linkage between the six tuned circuits. There are six brass gears with an anti-backlash feature that was not unexpected and seems to work well. What I did discover, that I cannot recall having ever seen before, is a method of vernier capacitor adjustment on the first tuned stage.

I had expected that this vernier might have been built as a single rotating vane actuated by a coaxial drive shaft. Not so; the change in capacitance is accomplished by causing the rotor vanes to shift laterally on the shaft bearings so they are more or less centered on the stator vanes! Crazy! Eh? But it works very smoothly.

The aluminum shielding was removed in order to properly clean the chassis.

Challenge #3

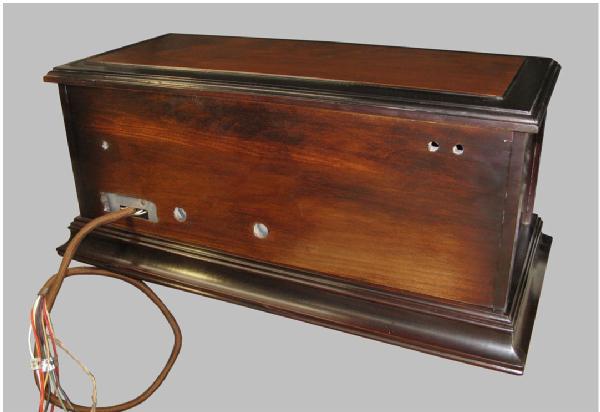

As mentioned, the cabinet finish was too damaged to just employ conservation methods. In addition the cabinet joints were loose and needed to be separated for proper clean-out and re-gluing.

Like the Oriole - Warwick 71, there is shading of the base and sides. It is not something that is appealing to modern eyes but never the less it was their deliberate decision. I find this very difficult to replicate and my work is only moderately successful in achieving the original effect. The top lid coloration departs from the Warwick 71 in that there does not appear to be shading of the central panel of the lid. Instead they outline the area with an opaque VanDyke brown.

This cabinet is dimensionally identical to that of the Oriole Warwick 71 and the Nunn-Landon Co. Cascade radio is made the same way except for being a 2” deeper cabinet. The only differences are the decorative simulated wood carvings attached to the front of the cabinets. They must have been manufactured by the same cabinet maker.

Challenge #4

At present one of the audio transformers is open circuit… There is no need to replace it. A substitute Thoardarson 1:3 ratio transformer was tacked in place in order that performance checks could be made on the radio. (More about this later.)

Ready for testing…

As mentioned earlier, the primary significance of these Oriole receivers is the fact that they are the first known manufactured broadcast receivers to make use of Cathode Follower RF Amplifier stages. The novelty of these receivers was revealed to me by articles authored by Joe Sousa and Ed Lyon printed in 2014 and 2017 issues of the MAARC monthly journal, Radio Age. If I had not seen these articles, it is unlikely I would have recognized the Oriole Model 100 as being of this lineage. While the late Greg Hunolt had found a reference for this model to add to his Battery Set Compendium, it appears that this Model 100 on exhibit is the only one remaining. It was apparently manufactured just before management decided to close the business.

The first measurements of the Oriole 100 were general gain per stage over the broadcast band which goes from 500 kHz to 1700 kHz. Signals from my URM-25D generator were coupled to the radio using a 0.02 mfd film cap in series with the antenna input. There is a tap switch to match the antenna to the radio. Setting the tap switch to Position 1 or 2 (they are actually shorted together) provides the best coupling to the first stage.

After a series of measurements, the tubes were cycled through the 3rd. stage to see if there was a significant change in per-stage gain because of the tubes used. With the tubes I have, there was something like 20% variability. The tubes matched closely (3%) on my Heathkit emission tube tester. After several rounds of measurements I was totally frustrated by discovering that measurements were not repeatable. Eventually I was able to identify one tube as the primary culprit. I still do not know why its gain drifts about. (Filament wires in the base appear to be in perfect condition and it tests good and stable for emission.)

While I can use a 10x scope probe on the primary of any stage RF transformer, touching the probe to any grid circuit (secondary) kills the signal almost completely. My O-scope has a maximum input sensitivity with a 10x probe of 10 mV. per division and 13pf. loading. I measured the peak to peak voltage across the cathode winding of tube #1 and then the same for tube #2. The voltage gain was 2.2 to 2.5. The same voltage gain was true of each additional stage, 2 to 3, 3 to 4 and 4 to 5.

The RF transformer windings are wound on black fiber tubing. The primary former has an o.d. of 0.59” and the secondary former has an o.d. of 1.5”. The two tubes are coupled together with brass screws & nuts in binocular fashion with a gap of about ¼”.

The RF coils have a turns ratio of 1:1 with approximately 106 turns on each coil. (The primary must be a bifilar winding because the cathode of the tube is the filament itself.) It is close wound - double layer and the grid coil has 106 turns in a close wound - single layer. All wire is DSC 28 gauge.

There is a lamination stack inside of the cathode coil presumed to be silicon iron alloy sheet similar to that employed in MW RF transformers such as are seen in the Federal 61, Erla Superflex and Acme reflex designs circa 1924. The approximately 20 strips that make the core are 1.5” long, 0.25” wide and 0.015” thick thus making a stack about 0.315” high.

At left are the first and second RF amplifier transformers. The small coil is in the cathode circuit and the larger coil is the grid circuit.

Note on the right cathode coil there is a small additional winding, this is the global regeneration winding.

The right tuning condenser visible in the background has a leaf spring that counteracts the jack screw that produces the lateral shift of the rotor being used as a vernier tuning adjustment.



As explained by Joe Sousa and Ed Lyon, the advantage of the cathode follower RF amplifier when used with simple triode vacuum tubes is that it eliminates the effects of grid to plate capacity and its considerable limitation to the amplification that can be obtained before the circuit breaks into oscillation. While the circuit provides no more than unity voltage gain, the voltage at resonance in the output tank of each stage can be more than 2.5 times as great. Therefore the net voltage gain of the stage is significant without any possibility of uncontrolled oscillation. (See Table included in the next post.)

This characteristic when employed with two or more stages, leads to their ability to employ deliberate, smoothly applied global regeneration to the stages. As mentioned, this would be in violation of RCA held patents but the implementation in this design was so very clever and works so well that you can hardly fault the designer for wanting to add the feature. This global regeneration just about doubles the tuner output voltage.

At the extremes of the regeneration control, the set will oscillate and therefore it can be used to find those weak stations for DX fun. As mentioned earlier, the first tuned circuit has a vernier control that must be tweaked for maximum sensitivity across the band. Having the set oscillating makes it easier to detect those weak stations a few tens of kHz off from where the vernier is not at its best position.

Only one other American manufacturer is known to have employed the cathode follower RF amplifier circuit in a broadcast receiver of the 1920s, but it is clear that their implementation lags that of Oriole sets built by W-K Electric Co. by at least a year. That other company is Nunn-Landon Company of Milwaukee, WI with their Cascade brand receivers. It seems very obvious that there was some technology transfer between the companies but there is apparently no surviving documentation to verify if this was through some business arrangement or by technology theft.

So why didn’t other American radio manufacturers of 1927 adopt this solution? It is only speculation on my part, but I can think that without radio press exposure of the performance obtained with the ‘revolutionary’ Trinum circuit coupled with un-licensed regeneration utilization, it could gain no traction against the very successful licensing of the Hazeltine Neutrodyne patents. Also in that year the first successful screened grid (tetrode) tube for RF amplification was widely reported in the radio press and would be widely available by the end of 1928. This tube innovation provided even greater voltage amplification making it possible to obtain comparable performance with one or two fewer tubes.

Challenge #6

As mentioned earlier, one of the audio transformers is open circuit… There is no desire to replace it since this radio, with the exception of a reproduction battery cable and possibly some of the vacuum tubes, remains an accurate historical reference of the technology of the day of manufacture. However since this radio features unique RF amplifier technology for the day, there is a strong desire to be able to demonstrate this technology. Fortunately there is a way to do this without destroying the historic record.

While investigating the possibility of repairing the open transformer, I decided to post a query on a Forum at antiqueradio.com. There were suggestions about how to create new windings that could be hidden inside the shell of the defective transformer and someone posed the question. “Would it be heresy to bypass the transformer with a solid state circuit?” I suggested that if the circuit could be made to mimic the vintage transformer faithfully and provide the voltage gain of a transformer, why not? To my way of thinking, it makes very little difference what the new materials used are, the only thing of concern is how well the new materials mimic the original performance. The fact that it could be accomplished without displacing the original part is the most desirable feature of any solution. With my experience in the layout of printed circuit boards using surface mount components, I wondered if the circuit could be made small enough to hide in multiple ways.

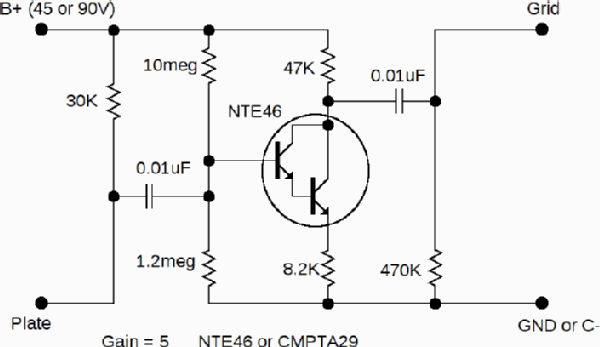

Circuit to mimic inter-stage audio transformer of the mid 1920s.

The respondent, Jay Kinnard of Austin, TX proposed a circuit and I decided to make a surface mount layout. Without much difficulty I made a circuit board only 0.7” x 0.85” with a total assembly height of less than 1/8”. The circuit works beautifully. It has the voltage gain of the original transformer and even has about the same levels of distortion (6%) as would be seen with a typical mid 1920s audio transformer. Jay discovered that with the addition of one more Darlington transistor and one resistor, he could make a replacement circuit with just 2% distortion. (My personal opinion is that this circuit modification of making the radio work “better than new” is not desirable.)

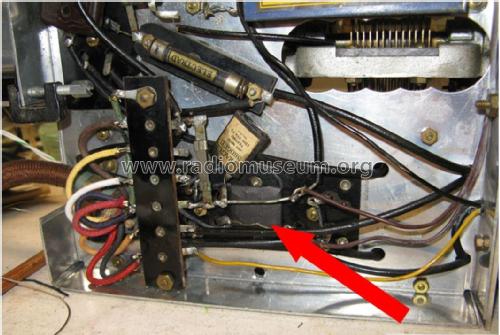

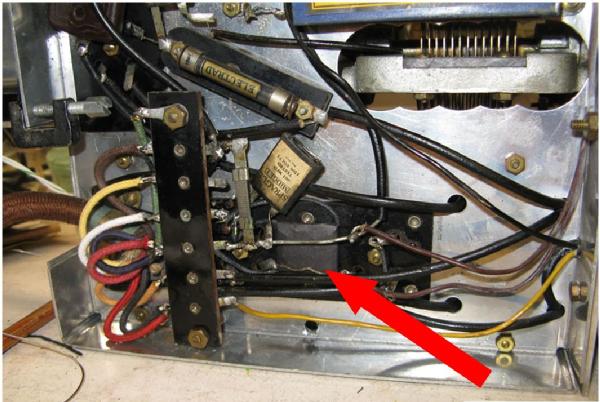

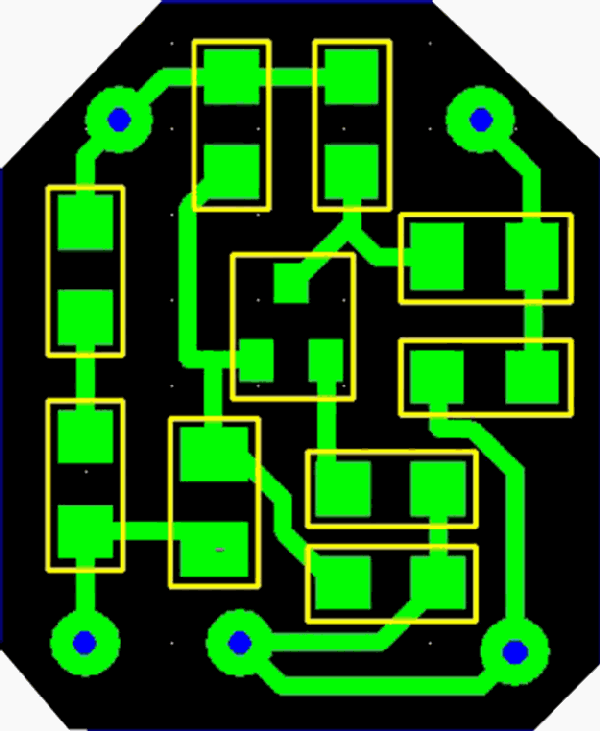

The little circuit board is wrapped in a slip of black paper and the wires are covered in small black braided spaghetti. Even if the board cannot be hidden completely inside the defective audio, it is so small that it virtually disappears among the vintage parts

So today, this radio can be operated just fine AND still has its original parts in place; AND only the defective part has been bypassed with an equivalent part resulting in effectively no change in original performance.



This version has a voltage gain of 5; transformers from the detector to first audio tube frequently have this 1:5 ratio. Changing the 1.2 Meg to 1.6 Meg and the 8.2 K to 12 K changes the Gain to 3.5; appropriate for use between the first and second audio amplifier tube. Mr. Kinnard pointed out that there may be some circuits where the ‘C’ bias is obtained from a high impedance source. If that is the case, there is a trace on the circuit board that can be broken to isolate the 470 K resistor from the other two resistors on the net. The 470 K can go to –C and the other two resistors to Ground or receiver common.

Footnotes:
But there was a Model 200

Greg Hunolt’s Battery Set Compendium lists a Model 200 as being available at the same time as the Model 100 so why is it not regarded the last of the W-K cathode follower RF amplifier designs? As it turns out, the Model 200 is actually an upgrade to the Oriole 7-B and Model 71 receivers using essentially the same RF transformer design for their 5 tube chassis. But now the chassis is equipped with Type 26, 27 & 71A tubes for AC operation from an external ‘B’ power supply that also provides three filament voltage windings.

Testing Challenge

1. In preparation for testing this Oriole 100, I found out that my Heathkit Capacitor Tester had a very, very weak eye tube and eye closure was not proper in showing the extent of leakage. I was surprised to find a 220K resistor was measuring 23.4 Meg! Two 100 Ohm resistors were more than double in value; a resistor in the voltage divider was way too high. This unit has been on my work bench for about 50 years and I was surprised that the ½ Watt composition resistors although properly sized for their load can fail… I had presumed that the resistor technology of the day had finally matured to eliminate such failure modes…. Not so….

With my capacitor checker back in operation, I could test the six big 0.5 mfd. bypass capacitors mounted on the bottom of the chassis made by Potter Manufacturing Co. Inc., North Chicago, Ill. These were the same capacitors that I had found on my Oriole Warwick Model 71; one of those capacitors was definitely shorted. I did not find any of the Model 100 capacitors to be shorted but leakage resistances were found to be between 2 and 6 meg Ohms. Power factor (at 60 Hz.) was about 15%. For an experiment, I replaced all these capacitors with 0.47 mfd. polypropylene units. I saw no measurable difference in circuit gain or distortion at 850 kHz. (arbitrary test point) Therefore the original units were reconnected for all formal testing.

2. I have a Heathkit RF Generator, IG-102, that was found to have a very distorted 400 Hz modulation. Rather than go into the debug of that unit, I turned to a URM-25D that I must have acquired 10 or so years ago but had never used. After a checkup of the generator power supply to make sure it was operating OK, I powered the generator and found that there was no 400 / 1k Hz. AM modulation. Geez… Something else to fix. Fortunately there is very good information on the Web on how to refurbish these units…

These units have 0.2, 0.1 & 0.01 mfd. paper dielectric capacitors molded into Bakelite cases that are notorious for high leakage over time… And sure enough they tested BAD in this generator. The sealed potentiometer for the setting of RF output was very noisy and switches needed a good cleaning. Unfortunately the chassis is a nightmare for repair access. The majority of repairs were on a sub chassis with the RF Voltmeter.

The output now appears stable and modulation looks good on a scope. I have a digital counter, and the generator output calibration over the MW frequencies agree within about 0.2%; completely satisfactory for my needs.

3. The final instrument necessary for these investigations is an inductance meter that can test at MW frequencies. I was not successful in finding anyone in my area that would loan me such a meter… The standard price on eBay for the Heathkit QM-1 is $200 plus shipping (although they are slow sellers). Of course these are meters that can be 40 to 60 years old at this point so will probably require servicing. That is OK because a basic re-cap job is all that is necessary. There are more expensive meters out there like those made by Boonton but I am told that they use a different and maybe superior circuit BUT there are ‘unobtanium’ components in that circuit that are known to fail especially if stored in damp locations for a long time. Eventually I was able to obtain a QM-1 complete with reference inductor from one of the Board members of the AWA Museum. An afternoon of re-capping and other checkout had it ready for use. One addition was made to the unit; a BNC connection to the output of the built-in signal generator to go to my digital counter. (The calibration markings of the Heathkit are 3 to 5% off..)


Oriole Model 100 Statistics

Coils

Antenna Matching
Two coils in series.
Coil 1 = 18 turns #24 AWG single strand DCC in single layer with taps.
Close wound on 3" dia. Bakelite tube.
Coil 2 = 36 turns #24 AWG Litz wire DSC in radial basket weave form placed inside Coil 1.

Inductance across all 54 turns measures 195 μH @ 790 kHz.(Heathkit std. ref. freq.)
(320 μH @ 1 MHz.)

Q of whole coil @kHz
98 1500 kHz
117 1300 kHz
152 1000 kHz
186 700 kHz
190 550 kHz
(Note coil is mounted on phenolic board away from chassis surfaces.)

Binocular coils
Coil 1 (Primary) = 2 x 106 turns of Bifilar laid wire in two layers.
Of #26 AWG single strand DSC
Close wound on 0.57" diameter Bakelite tubing
Winding width about 2.15" on coil form.
Each winding = 1.15 Ohm
Sheet iron core consisting of 0.19" wide strips 1.5" long and 0.015" thick
20 sheets stacked to form a bar. (measurements approximate)
Inserted in the center of the tube and fixed with rosin.
Inductance @ 790 kHz = 190 μH - Q less than 10.

Coil 2 (Secondary) = 106 turns wound in single layer.
Of #26 AWG single strand DSC
Close wound on 1.5" diameter Bakelite tubing
Winding width about 2.15" on coil form.
Coil 1 & 2 spaced 1/4" apart.
Turns ratio between coils 1:1

Sample RFT (3rd. Coil from Antenna)
Measurement made with coil in place. But no radio circuit connections to the winding.
(Leaving either end connected to radio will not work with the QM-1)
Secondary Q measured @kHz
78 1500
79 1400
84 1300
83 1200
85 1100
88 1000
90 900
91 800
89 700
85 600
84 550
80 500
Inductance @ 790 kHz. 220 μH
Instrument used - Heathkit QM-1
Supplied Heathkit reference inductor. 250 μH, Q 97, C 94 pf @790 kHz.

Thank you Robert Lozier for the masterful restoration of the Oriole Model 100 and for your excellent article.

-Joe

Joe Sousa, 10.Aug.20

Weitere Posts (1) zu diesem Thema.
