FRG-8800

FRG-8800; Yaesu-Musen Co. Ltd. (ID = 858076) Amateur-R
FRG-8800; Yaesu-Musen Co. Ltd. (ID = 107140) Amateur-R FRG-8800; Yaesu-Musen Co. Ltd. (ID = 107141) Amateur-R
FRG-8800; Yaesu-Musen Co. Ltd. (ID = 223404) Amateur-R FRG-8800; Yaesu-Musen Co. Ltd. (ID = 223405) Amateur-R
FRG-8800; Yaesu-Musen Co. Ltd. (ID = 555387) Amateur-R FRG-8800; Yaesu-Musen Co. Ltd. (ID = 858061) Amateur-R

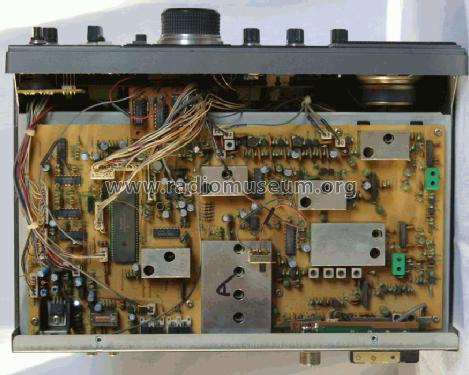

FRG-8800; Yaesu-Musen Co. Ltd. (ID = 858062) Amateur-R FRG-8800; Yaesu-Musen Co. Ltd. (ID = 1535097) Amateur-R
Use red slider bar for more.
FRG-8800; Yaesu-Musen Co. Ltd. (ID = 107140) Amateur-R
Yaesu-Musen Co. Ltd.: FRG-8800 [Amateur-R] ID = 107140 933x382
Select picture or schematic to display from thumbnails on the right and click for download.
For model FRG-8800, Yaesu-Musen Co. Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Yaesu-Musen Co. Ltd.; Tokyo
Year: 1984–1993 Type: Amateur-Receiver
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Superhet, double/triple conversion; ZF/IF 47055/455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: FRG-8800 - Yaesu-Musen Co. Ltd.; Tokyo
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 334 x 118 x 225 mm / 13.1 x 4.6 x 8.9 inch
Notes

Yaesu Communications-Receiver FRG-8800.
Range: 150-29999 kHz; Modes: AM, SSB, CW, FM; 12 memories (needs 3×1,5-V-Batteries for backup); Optional: VHF-Converter FRV-8800 (118-174 MHz); 12-V-connector; CAT-Interface

Net weight (2.2 lb = 1 kg) 6.1 kg / 13 lb 7 oz (13.436 lb)
Price in first year of sale 1,800.00 DM
Collectors' prices
Source of data -- Original-techn. papers.
Mentioned in RICOFUNK-Katalog 1986

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
