• Year
  • 1991
  • Category
  • Amateur TRX: Transmitter/Receiver (and Transceiver)
  • Radiomuseum.org ID
  • 73468

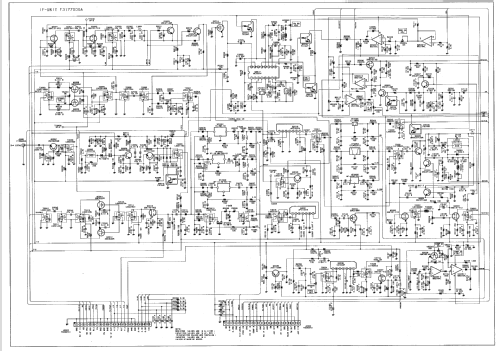

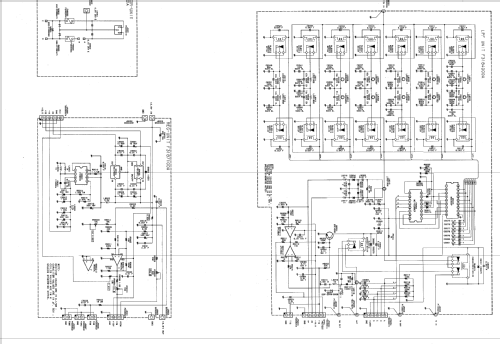

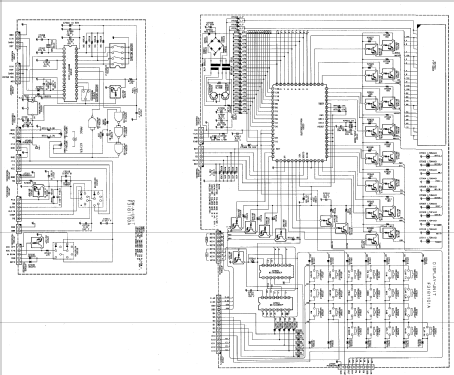

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 47210/10900/455 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 110; 117; 200; 220; 234 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FT-990 - Yaesu-Musen Co. Ltd.; Tokyo
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 368 x 129 x 335 mm / 14.5 x 5.1 x 13.2 inch
  • Notes
  • Yaesu HF-Transceiver FT-990.
    Frequency range: RX 0.1-30 MHz, TX 160-10 m incl. WARC; Modes: AM, FM, SSB, CW, FSK; Pout: 100 W (AM 25 W).
  • Net weight (2.2 lb = 1 kg)
  • 13 kg / 28 lb 10.1 oz (28.634 lb)
  • Price in first year of sale
  • 4,694.00 DM
  • Mentioned in
  • RICOFUNK-Katalog 1992
  • Literature/Schematics (1)
  • beam Amateurfunk-Geräteführer '92
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
