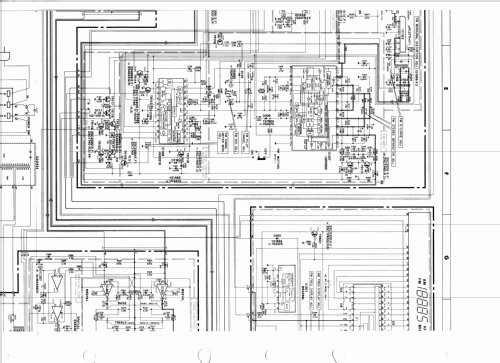

Select picture or schematic to display from thumbnails on the right and click for download.
For model R-700, Yamaha Co.; Hamamatsu:
Original Yamaha Prospect

Country:  Japan
Manufacturer / Brand:  Yamaha Co.; Hamamatsu
alternative name

Nippon Gakki
Year: 1981/1982 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 124 W (unknown quality)
from Radiomuseum.org Model: R-700 - Yamaha Co.; Hamamatsu
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 122 x 337 mm / 18.9 x 4.8 x 13.3 inch
Notes HIFI Receiver, 2x62W an 8 Ohm nach DIN, 2x80W an 4 Ohm.
Synthesizer-Abstimmung mit Station Lock, je 5 Stationstasten für UKW und MW, digitale Frequenzanzeige.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 1,042.00 DM
Source of data -- Original-Prospect

Model page created by a member from D. See "Data change" for further contributors.
