12H093 or 12H093R Ch=11C21 early

12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 61784) Radio

12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 491953) Radio

12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 491954) Radio

12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 491955) Radio

12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 491956) Radio

12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 491957) Radio

12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 491958) Radio

12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 491993) Radio

12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 491994) Radio

12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 491995) Radio
12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 215189) Radio 12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 215192) Radio
12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 215195) Radio 12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 215196) Radio
12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 215197) Radio
Use red slider bar for more.
12H093 or 12H093R Ch=11C21; Zenith Radio Corp.; (ID = 215189) Radio
Zenith Radio Corp.;: 12H093 or 12H093R Ch=11C21 [Radio] ID = 215189 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model 12H093 or 12H093R Ch=11C21 early, Zenith Radio Corp.; Chicago, Illinois:

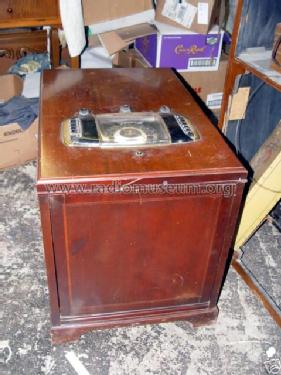

12-H-093 (Ch=11C21) Ebay seller mwinternetauctionsonmain

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, Illinois
alternative name

Chicago Radio Lab
Year: 1946–1948 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6AG5 6SG7 6SH7 6J5GT 6AL7GT 6V6GT 6V6GT 5Y3GT 6SB7Y 7W7 6S8GT
Principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, Short Wave plus FM.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: 12H093 or 12H093R Ch=11C21 [early] - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console: Chairside Radio.
Notes Pushbuttons Operating Frequencies:
BC 540 to 1600kc
SW 9 to 12 mc
FM1 42 to 49 mc
FM2 88 to 108 mc.

Record Changer: Zenith Model S-11680.
Collectors' prices
External source of data Ernst Erb

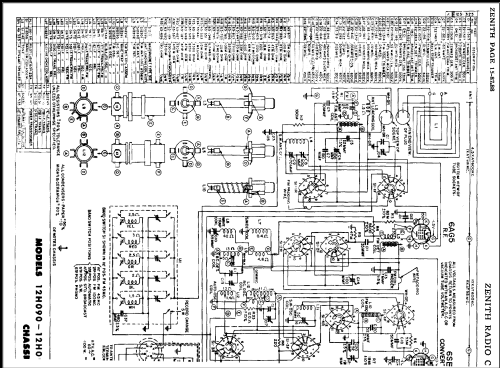

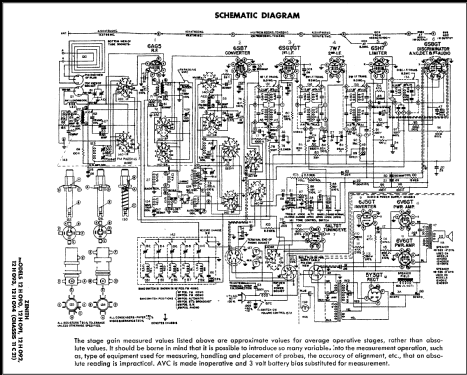

Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 2, Folder 462-20)
