5S338 5-S-338 Ch=5529

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 67661
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 3 W (unknown quality)
  • Material

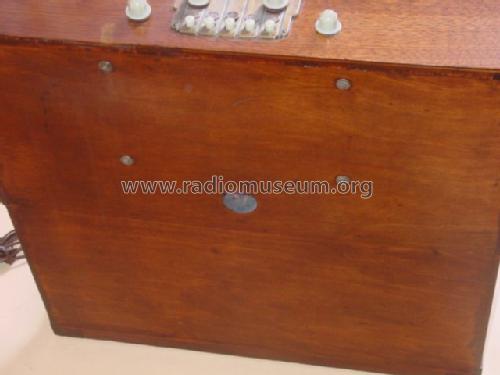

  • Wooden case
  • from Radiomuseum.org
  • Model: 5S338 5-S-338 Ch=5529 - Zenith Radio Corp.; Chicago,
  • Shape

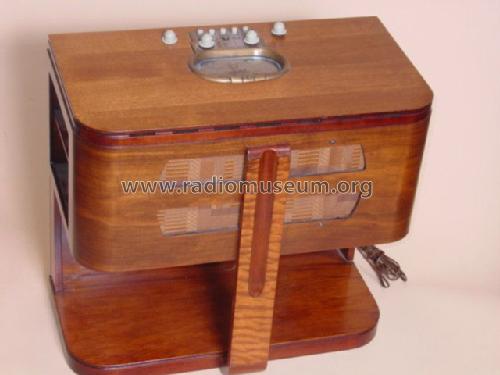

  • Console: Chairside Radio.
  • Dimensions (WHD)
  • 22.1 x 21 x 12.5 inch / 561 x 533 x 318 mm
  • Notes

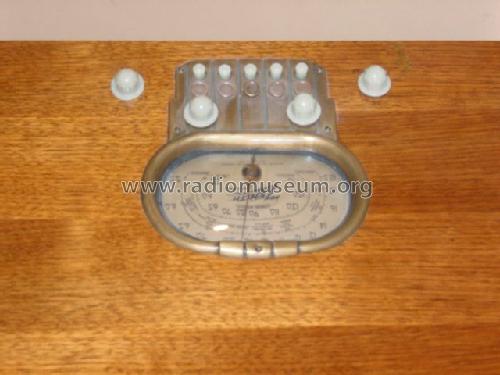

  • Pushbuttons
  • Price in first year of sale
  • 40.00 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
