• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 67884
    • alternative name: Chicago Radio Lab

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 6S341 Ch= 5649 - Zenith Radio Corp.; Chicago,
  • Shape
  • Console: Chairside Radio.
  • Dimensions (WHD)
  • 29 x 22 x 18 inch / 737 x 559 x 457 mm
  • Price in first year of sale
  • 60.00 $
  • External source of data
  • Ernst Erb

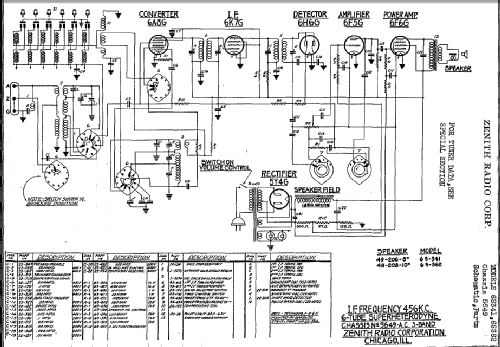

  • Circuit diagram reference
  • Rider's Perpetual, Volume 9 = 1938 and before
