Zenith Radio Corp.;: 775B Ch=2059 [Radio] ID = 225898 400x300

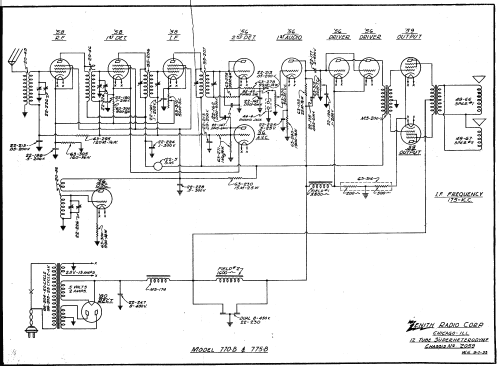

Select picture or schematic to display from thumbnails on the right and click for download.
For model 775B Ch=2059, Zenith Radio Corp.; Chicago, Illinois:
775B (Ch=2032) Ebay seller nextel8champ

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, Illinois
alternative name

Chicago Radio Lab
Year: 1933 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 58 58 56 58 56 56 56 56 56 59 59 80
Principle Superhet with RF-stage; ZF/IF 175 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115/230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 775B Ch=2059 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes dual speaker model
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before

All listed radios etc. from Zenith Radio Corp.; Chicago, Illinois
