For model 7-S-232 "Waltons" Ch=5709, Zenith Radio Corp.; Chicago, Illinois:
Ebay Seller pwphonos Item 110858565479

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, Illinois
alternative name

Chicago Radio Lab
Year: 1937/1938 Type: Broadcast Receiver - or past WW2 Tuner

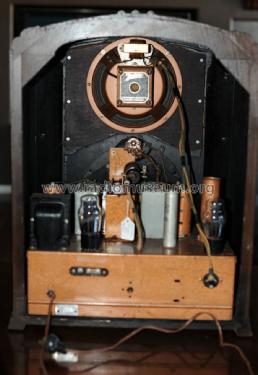

Valves / Tubes 7: 6A8G 6K7G 6H6G 6F5G 6T5 6F6G 5Y4G
Principle Super-Heterodyne (Super in general); ZF/IF 456 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt

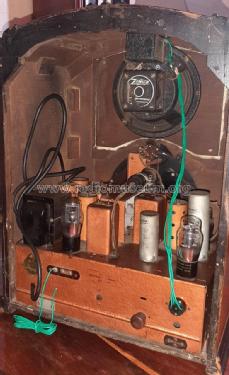

Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: 7-S-232 "Waltons" Ch=5709 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 16.9 x 23.8 x 12.4 inch / 429 x 605 x 315 mm
Notes

The popular set from the TV series "The Waltons".

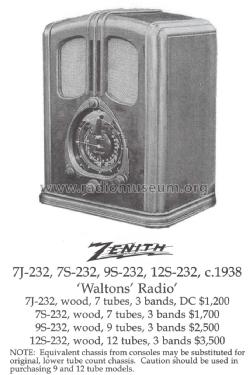

The cabinet is similar for the following "Walton" models:
12-S-232
  9-S-232

  9-S-232AT
  8-A-232
  7-S-232
  7-S-232T
  7-J-232
  7-J-232T

They are looking all the same. That's why all of them are called "Waltons" although only one thereof was in the play.

Price in first year of sale 75.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio CollectorGrinder, 1995
Circuit diagram reference Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in Collector's Guide to AR4.Ed.,Bunis, tube
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 170.)
Literature/Schematics (2) Cathedral & Tombstone Radios; Stein, 2008 (page 283.)

All listed radios etc. from Zenith Radio Corp.; Chicago, Illinois
Here you find 3480 models, 2549 with images and 2688 with schematics.
