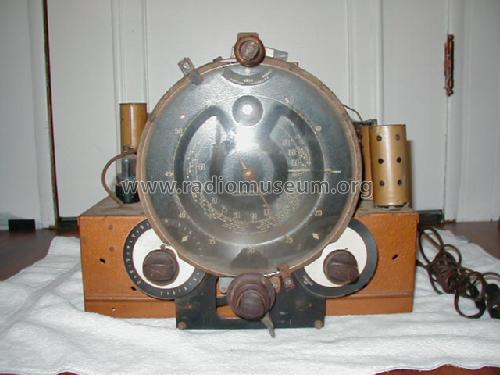

{gbW: "748", gbH: "700", mW: "400", mH: "375", kb: "58 KB", notes: "For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:[br]with courtesy by Ebayseller atomicwarehouse(Philip Denci)", title: "Zenith Radio Corp.; 9S244 9-S-244 Ch=5905 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "800", gbH: "620", mW: "483", mH: "375", kb: "77 KB", notes: "For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:[br]with courtesy by Ebayseller atomicwarehouse(Philip Denci) front view", title: "Zenith Radio Corp.; 9S244 9-S-244 Ch=5905 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "630", gbH: "700", mW: "337", mH: "375", kb: "47 KB", notes: "For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:[br]with courtesy by Ebayseller atomicwarehouse(Philip Denci) side view", title: "Zenith Radio Corp.; 9S244 9-S-244 Ch=5905 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "800", gbH: "600", mW: "500", mH: "375", kb: "86 KB", notes: "For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:[br]with courtesy by Ebayseller atomicwarehouse(Philip Denci) chassis view", title: "Zenith Radio Corp.; 9S244 9-S-244 Ch=5905 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "800", gbH: "600", mW: "500", mH: "375", kb: "78 KB", notes: "For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:[br]with courtesy by Ebayseller atomicwarehouse(Philip Denci) chassis view", title: "Zenith Radio Corp.; 9S244 9-S-244 Ch=5905 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "525", gbH: "700", mW: "281", mH: "375", kb: "65 KB", notes: "For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:[br]with courtesy by Ebayseller atomicwarehouse(Philip Denci) dial view", title: "Zenith Radio Corp.; 9S244 9-S-244 Ch=5905 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "58 KB", notes: "For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:[br]withcourtesy by ebayseller arkiemay1 chassis 5905", title: "Zenith Radio Corp.; 9S244 9-S-244 Ch=5905 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "61 KB", notes: "For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:[br]withcourtesy by ebayseller arkiemay1 chassis 5905 bottom view", title: "Zenith Radio Corp.; 9S244 9-S-244 Ch=5905 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "640", gbH: "480", mW: "500", mH: "375", kb: "59 KB", notes: "For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:[br]withcourtesy by ebayseller arkiemay1 chassis 5905", title: "Zenith Radio Corp.; 9S244 9-S-244 Ch=5905 uploaded by Hans Amberger (2)", ite: "2"} {gbW: "550", gbH: "327", mW: "500", mH: "297", kb: "29 KB", notes: "For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:[br]Scanned from the Radio Retailing June 1937.", title: "Zenith Radio Corp.; 9S244 9-S-244 Ch=5905 uploaded by Ernst Erb (2)", ite: "2"}

Next pictures

Use red slider bar for more.

9S244 9-S-244 Ch=5905; Zenith Radio Corp.; (ID = 315122) Radio

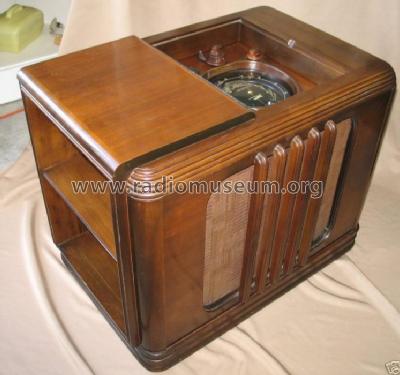

Zenith Radio Corp.;: 9S244 9-S-244 Ch=5905 [Radio] ID = 315122 748x700

Select picture or schematic to display from thumbnails on the right and click for download.

For model 9S244 9-S-244 Ch=5905, Zenith Radio Corp.; Chicago, Illinois:
with courtesy by Ebayseller atomicwarehouse(Philip Denci)

Country:

United States of America (USA)

Manufacturer / Brand:

Zenith Radio Corp.; Chicago, Illinois

alternative name

Chicago Radio Lab

Year: 1937

Type: Radio - or past WW2 tuner

Valves / Tubes

9: 6K7G 6L7G 6K7G 6K7G 6T5 6H6G 6F5G 6F6G 5Y4G

Principle	Superhet with RF-stage; ZF/IF 456 kHz
Wave bands	Broadcast, Short Wave(s) and Police.
Details
Power type and voltage	Alternating Current supply (AC) / 115 Volt
Loudspeaker	Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out	4.5 W (unknown quality)
from Radiomuseum.org	Model: 9S244 9-S-244 Ch=5905 - Zenith Radio Corp.; Chicago,
Material	Wooden case
Shape	Console: Chairside Radio.
Dimensions (WHD)	27.8 x 21.8 x 18 inch / 706 x 554 x 457 mm
Price in first year of sale	99.95 $
Collectors' prices	1 Collector price (for members Radiomuseum.org)
External source of data	Ernst Erb
Source of data	The Radio CollectorGrinder, 1995
Circuit diagram reference	Rider's Perpetual, Volume 8 = 1937 and before
Mentioned in	Collector's Guide to AR4.Ed.,Bunis, tube
Literature/Schematics (1)	Zenith The Glory Years, Cones,03
Literature/Schematics (2)	Radio Retailing (R & Television R.) (June 1937.)

All listed radios etc. from Zenith Radio Corp.; Chicago, Illinois
Here you find 3382 models, 2468 with images and 2648 with schematics.
