A402 Sea Shore Ch= 4A41

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1957 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 84756
    • alternative name: Chicago Radio Lab

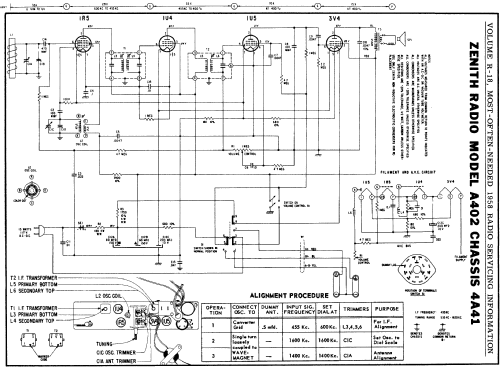

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / (7.5; 90); AC/DC 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: A402 Sea Shore Ch= 4A41 - Zenith Radio Corp.; Chicago,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Selenium Rectifier.
  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 18, 1958
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
