For model B1718B Ch= 15B20, Zenith Radio Corp.; Chicago, IL:
USA_Zenith_B1718B_front.

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 17CRP4
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: B1718B Ch= 15B20 - Zenith Radio Corp.; Chicago,
Notes 17" b/w TV with US standard VHF Tuner Channels 2 thru 13, 14 thru 83 UHF.

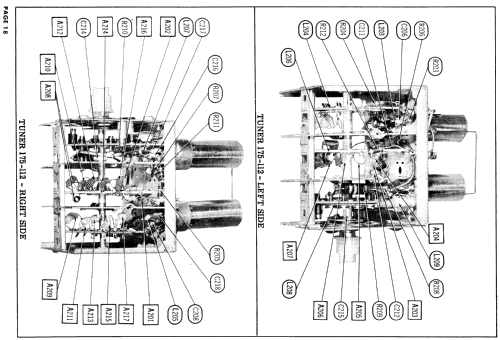

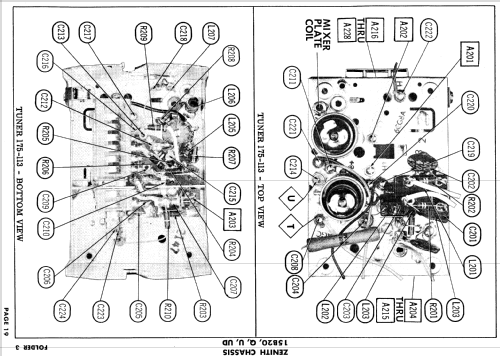

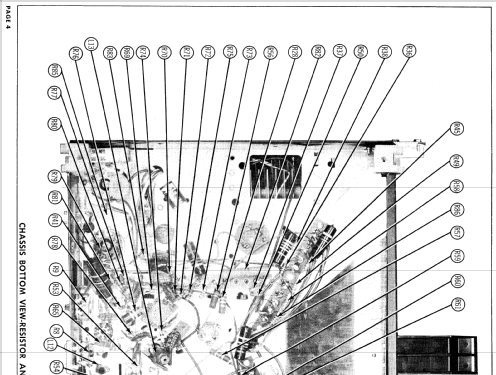

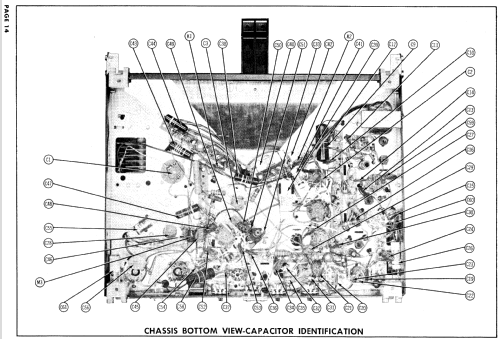

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-59, Set 426, Folder 3)

Model page created by Egon Penker. See "Data change" for further contributors.
