B835R Ch= 8A02 (post war)

B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 615566) Radio B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 1401245) Radio
B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 1431582) Radio B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 1431583) Radio
B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 1721826) Radio B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 1721827) Radio
B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 1721828) Radio B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 1721829) Radio
B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 1721830) Radio B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 1749732) Radio
Use red slider bar for more.
B835R Ch= 8A02 ; Zenith Radio Corp.; (ID = 615566) Radio
Zenith Radio Corp.;: B835R Ch= 8A02 [Radio] ID = 615566 733x515
Select picture or schematic to display from thumbnails on the right and click for download.
For model B835R Ch= 8A02 (post war), Zenith Radio Corp.; Chicago, IL:
1956 zenith B875R

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, IL
alternative name

Chicago Radio Lab
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 12AU6 19T8 12BA6 12BA6 12AT7 6BJ6 6AB4 35C5
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 3 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: B835R Ch= 8A02 - Zenith Radio Corp.; Chicago,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 16 x 10 x 8 inch / 406 x 254 x 203 mm

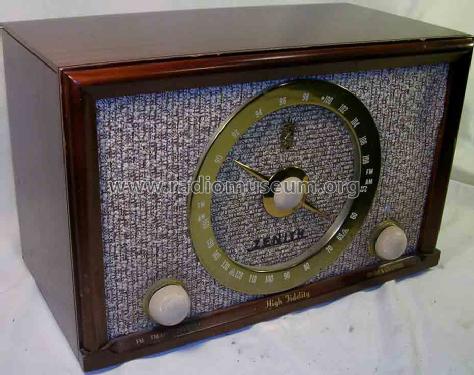

Notes table model am and fm with blonde oak or mahogany case
Net weight (2.2 lb = 1 kg) 6.810 kg / 15 lb 0 oz (15 lb)
Price in first year of sale 45.00 CDN
Source of data - - Data from my own collection

Model page created by John Allen. See "Data change" for further contributors.
