C3012H, R, C3013H, C3014H, R Ch= 18C20Q

Zenith Radio Corp.; Chicago, IL

  • Year
  • 1959
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 155645
    • alternative name: Chicago Radio Lab

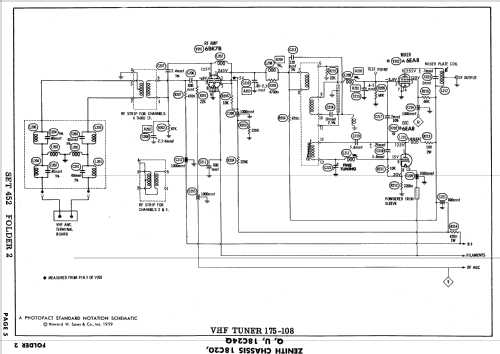

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 19
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: C3012H, R, C3013H, C3014H, R Ch= 18C20Q - Zenith Radio Corp.; Chicago,
  • Shape
  • Console with any shape - in general
  • Notes
  • 21" Television Receiver with Remote Control.
    Picture tube: 21CPX4
    Tuning Range: TV - Channels 2 thru 13, 14 thru 84 UHF.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
