• Country
• United States of America (USA)

• Manufacturer / Brand
• Zenith Radio Corp.; Chicago, IL

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79097

• • alternative name: Chicago Radio Lab

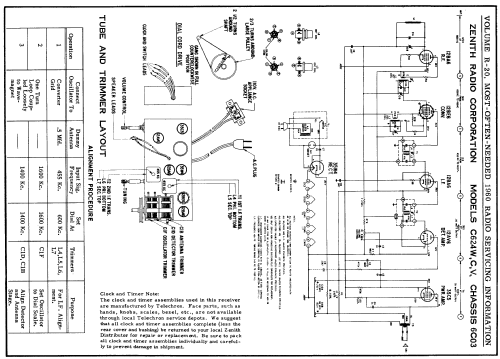

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: C624C Empress CH= 6C03 - Zenith Radio Corp.; Chicago,

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 13.5625 x 5.75 x 6.4375 inch / 344 x 146 x 164 mm

• Notes

• Sams photofact set 481 folder 15 date 4-60 features the Zenith models C624C, C624V and C624W as the same schematic.

  The following table lists the various cabinet colors.

  Model	Cabinet Color
  C624C	Charcoal
  C624V	Pink
  C624W	White

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 20, 1960

• Mentioned in
• Machine Age to Jet Age II (page 328.)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 481 folder 15 date 4-60)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
