H723 Ch= 7H04; Zenith Radio Corp.; (ID = 118851) Radio
Zenith Radio Corp.;: H723 Ch= 7H04 [Radio] ID = 118851 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model H723 Ch= 7H04, Zenith Radio Corp.; Chicago, Illinois:

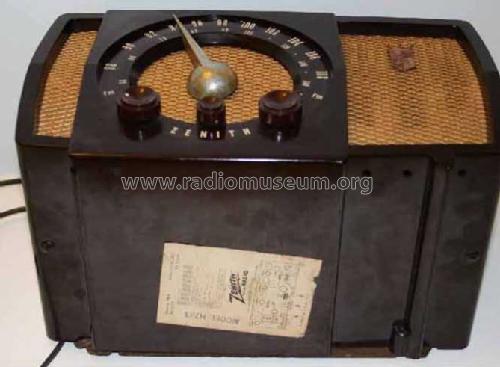

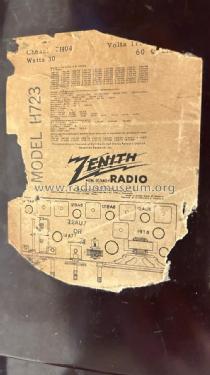

H-723(Ch7H04)1950 copy from Ebay seller okbat82543

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, Illinois
alternative name

Chicago Radio Lab
Year: 1950 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 12BA6 12AT7 12BA6 12BA6 12AU6 19T8 35C5
Principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM.
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
Power out
from Radiomuseum.org Model: H723 Ch= 7H04 - Zenith Radio Corp.; Chicago,
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13 x 7.5 x 7 inch / 330 x 191 x 178 mm
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

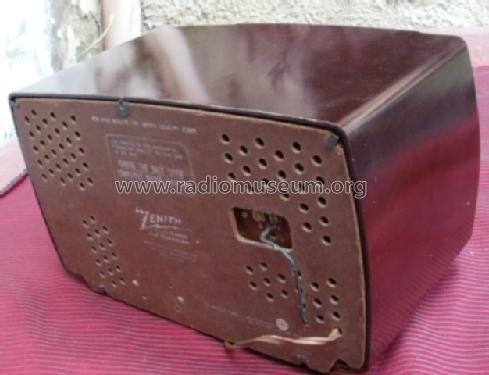

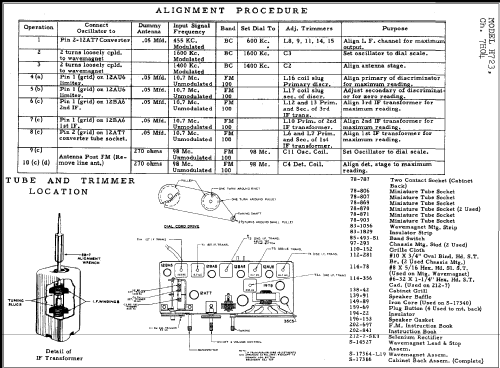

Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950
Mentioned in Collector's Guide to Antique Radios 4. Edition

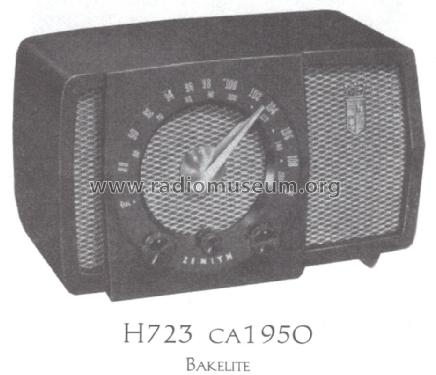

Literature/Schematics (1) Machine Age to Jet Age II (page 327.)
