Model: Power Unit ZE13
Antique radios, Old Time Radios
Power Unit ZE13
Country:
United States of America (USA)
Manufacturer/Brand:
Zenith Radio Corp.; Chicago, Illinois
Year: 1928 / 1929
Type:
Power supply or battery or charger
Mod.-ID = 68359
previous
|
Result List
|
next
|
New search for Radios etc.
Schematics etc.: 1 (for
members)
Wave bands
n.a.When collecting this field of data I had no information on the wave bands - or this set is not a receiver. Quand je faisait la collection je ne savais rien de ces dates des gammes d`ondes - ou bien l`apparaeil n`est pas un récepteur.
Beim Erfassen dieses Feldes waren mir die Wellenbereiche nicht bekannt - oder der Apparat ist kein Empfänger.
Power type and voltage
Alternating Current supply (AC) / 115 VoltAC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Normalerweise sind diese Geräte mit einem Trafo mit Primär- und Sekundärwicklungen versehen. Dadurch führt das Chassis kein gefährliches Potential.
www.radiomuseum.org
Model: Power Unit ZE13
Valves / Tubes
1:
80
Notes

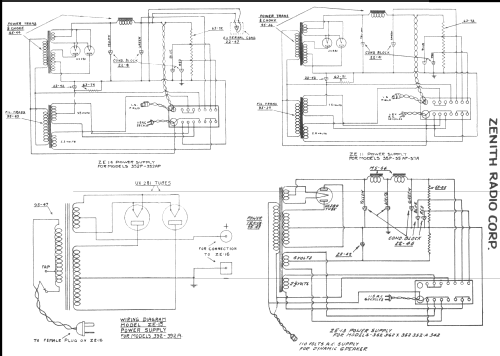

Power unit for dynamic speaker for Models 362/ 362X/ 352/ 352A/ 342
