Trans-Oceanic (TransOceanic) Royal D7000Y Ch= 500MDR70

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 107311) Radio

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 107312) Radio

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 107313) Radio

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 107314) Radio

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 107784) Radio

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 107785) Radio

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 107786) Radio

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 107789) Radio

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 107790) Radio

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 107791) Radio
Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 917664) Radio Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 917663) Radio
Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 917660) Radio Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 51567) Radio
Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 215166) Radio Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 215167) Radio
Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 215168) Radio Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 441661) Radio
Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 779285) Radio Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 780249) Radio
Use red slider bar for more.

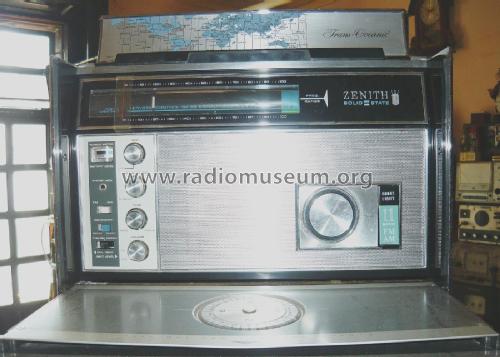

Trans-Oceanic Royal D7000Y Ch= 500MDR70; Zenith Radio Corp.; (ID = 917664) Radio
Zenith Radio Corp.;: Trans-Oceanic Royal D7000Y Ch= 500MDR70 [Radio] ID = 917664 832x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trans-Oceanic (TransOceanic) Royal D7000Y Ch= 500MDR70, Zenith Radio Corp.; Chicago, Illinois

Country:  United States of America (USA)
Manufacturer / Brand:  Zenith Radio Corp.; Chicago, Illinois
alternative name

Chicago Radio Lab
Year: 1973–1978 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 18:
Principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM.
Details
Power type and voltage Line / Batteries (any type) / 115; 230 / 8 × 1,5 & 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Trans-Oceanic Royal D7000Y Ch= 500MDR70 - Zenith Radio Corp.; Chicago,
Material Various materials
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 13.8 x 10.2 x 6.2 inch / 351 x 259 x 157 mm
Notes BC/LW/7xSW/tunable VHF weather band. Bryant/Cones; See also the article here.
Siehe auch den Artikel hier.
Si veda anche l'articolo in questa pagina.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 300.00 $
Collectors' prices
External source of data Konrad Birkner
Mentioned in Bryant / Cones: The Zenith Transoceanic

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Zenith Radio Corp.; Chicago, Illinois
Here you find 3526 models, 2659 with images and 2712 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Zenith Radio Corp.;: Trans-Oceanic Royal D7000Y Ch= 500MDR70
Threads: 1 | Posts: 8
Hits: 3451     Replies: 7
zenith: Ch= 500MDR70; Trans-Oceanic Royal D7000
Alfred Pugliese
10.Dec.08
  1

Hello all......I need guidance in repair of chart and dial lights. They are not working, and the bulbs are good. I am having trouble finding them in schematic. There must be a common part that is disabling. I am not getting voltage on pins that attach to chart light.  All help appreciated...Thanks  AL

Hans M. Knoll
10.Dec.08
  2

Hello Alfred,

see here and observ, there ist a switch on/off





knoll

Alfred Pugliese
09.Jan.09
  3

Hi all....Happy New Year!  For everyones info....The dial and chart lights do not work without the batteries inserted! So even when AC is working....the radio needs batteries to work lights.....AL

Charles Jones
23.Jan.09
  4

hello. you need one d-cell installed in order for the dial and map lights to work. there's a place in the back for a single d-cell, and that's where it goes. i hope this clears up your problem...



charles

Todd Stackhouse
25.Jan.09
  5

...those front panel slide switches in these are known to develop contact oxidation over time.  I had that same issue with the D7000Y I just got last month (I knew about it before I bought it; the eBay seller had said in his description that the lights and battery indicator weren't working), but noticed that if I worked the switch back and forth a few times, the dial lights would blink momentarily and the meter would jump.  A little De-Ox-It in the dial light/battery meter switch got them working properly...so I proceeded to put some into all the switches and controls.  It would not be a bad idea to use some of that or a similar contact cleaner on those switches (it will be necessary to pull the chassis to do it), and it may even get your lights working as well.  If not, I believe those are #123 bulbs.

Sandor Selyem-Tóth
14.Jun.10
  6



Dear Hans!

 Now I have such a device can only get it at the end of the month.

Problems:
1 st / No (Back ) cover.
2 / I do not see the line voltage plug (maybe the battery power supply connector)?
Regards:

STS
Javaslat jobb fordításra
Hans M. Knoll
15.Jun.10
  7

Hello  Sandor.

I dont own such Model. ROYAL 7000.  I have only a Book from ZENITH Radios.

Attached you can find a Scann fom this book. There you can read, the Powersuply for AC is mounted inside the rear Cover.

Mr. Birkner, maybe can say more to this model?



regards, hans

Konrad Birkner † 12.08.2014
15.Jun.10
  8

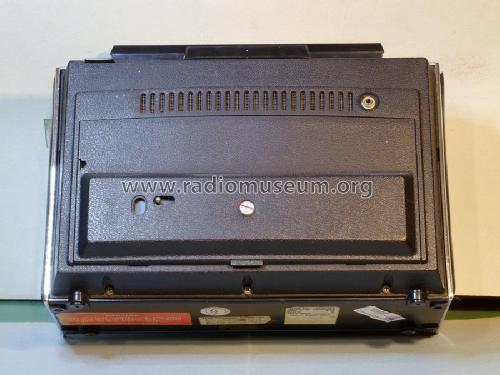

There is receptacle for a special mains plug. To insert it, a slider must be pushed aside which simultaneously changes the mode from battery to mains operation.  see attached pictures.
