10DE7

Information - Help
ID = 5221



Tube type:  Double Triode
Identical to 10DE7
Similar Tubes
Heater different:
  13DE7 ; 19DE7 ; 6DE7

Base Noval, 9 pin miniature (USA pico-9) B9A
Was used by Radio/TV-reception etc.
Filament Vf 9.7 Volts / If 0.6 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Tube prices 2 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973

10DE7: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

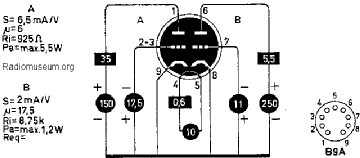

10de7.png 10DE7: Datenblatt
Wolfgang Bauer


Just Qvigstad
10DE7: RCA Tube Manual
Peter Hoddow

Usage in Models 47= 1957? ; 4= 1957 ; 32= 1958? ; 87= 1958 ; 32= 1959? ; 18= 1959

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):220

Collection of



10DE7
