2N3822

Information - Help
ID = 36820

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Transistor   Universal
Identical to 2N3822
Similar Tubes
Normally replaceable-slightly different:
  2N5592 ; 2N5593 ; 2N5594 ; 2SK11 ; 2SK12
Other base and data slightly different:
  2SK17 ; BF410 ; MPF103
Base Wires
Description Material/Aufbau/Pol.: Silizium N-Kanal Sperrschicht FET;
Form/Case/Outline: TO-72 Anschlussfolge SDGs;
Daten/electr.data: I ds s: 2...10 mA; U gS: <4 V; I gs s: 0.1 µA; ß (beta): 3-6.5; N: 300 mW; Imax(Ig): 10 mA; Umax(Ud): 50 V; f g(FT): __ MHz; tmax j: 175 °C.
Manufactured by National Semiconductors and Valvo.
Austauschtyp: MPF103, 2N3821, E210 (Siliconix), ...
-.
Dimensions (WHD)
incl. pins / tip		 6 x 6 x 6 mm / 0.24 x 0.24 x 0.24 inch
Weight 1 g / 0.04 oz
Information source -- Collector info (Sammler)   KTT 1969/70, TTT Steidle 1981, Valvo

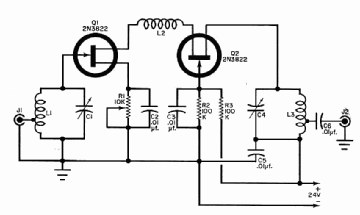

2N3822: Personal file
Antonio Rabitti
to72_sdgs_5.gif 2N3822: TVT 73
Günther Stabe † 19.8.20
2N3822: Siliconix-FET 1979
Heinz Höger
