6CU5

Information - Help
ID = 4744

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Beam Power Tube   Power/Output
Identical to 6CU5
Similar Tubes
Heater different:
  12C5 ; 12CU5 ; 17C5 ; 17CU5
First Source (s)
06.Feb.1956 : Electron Tube Registration List
Base Miniatur-7-Pin-Base B7G, USA 1940
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 1.2 Ampere / Indirect / Specified voltage AC/DC
Tube prices 2 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973

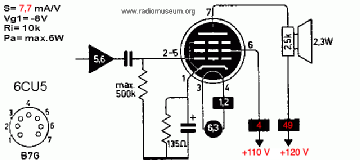

6CU5: corrected version
Roland Langfeld
mi44_g_1.gif 6CU5: RTT Schwandt
Günther Stabe † 19.8.20

Just Qvigstad 		6cu5_techdat01.png
6CU5: RCA Tube Manual
Peter Hoddow
More ...
Usage in Models 56= 1956 ; 100= 1957? ; 109= 1958 ; 18= 1959? ; 2= 1960?? ; 3= 1960? ; 2= 1960 ; 5= 1961? ; 1= 1961 ; 1= 1964? ; 1= 1967?? ; 1= 1969?
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):299

Collection of

Karlheinz Fischer (D)
Michael Gnaedig-Fischer (MEX)
Peter Pfeiffer (D)
Giuseppe Feniello (I)


6CU5
