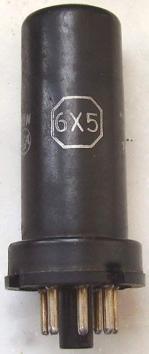

6X5

Information - Help
ID = 3139

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  Full-Wave Vacuum Rectifier   Power-supply
Identical to 6X5 = VT-126 = 6Ц5 = UX227_rect = CV573
Similar Tubes
Other shape (e.g. bulb type):
  6X5G ; 6X5GT
Different maximum ratings:
  6W5G
Other base:
  6X4 ; EZ90
First Source (s)
13.Feb.1936 : Electron Tube Registration List
Predecessor Tubes 84   84/6Z4   6Z4/84
Successor Tubes 6X4

Base Octal (Int.Octal, IO) K8A, USA 1935 (Codex=Ud)
Filament Vf 6.3 Volts / If 0.6 Ampere / Indirect / Parallel, (AC/DC) /
Tube prices 0 Tube prices (visible for members only)
Literature Essential Characteristics, GE 1973
Taschenbuch zum Röhren-Codex 1948/49

  6X5: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Michael Schlör

6X5: Private collection
Emilio Ciardiello


6X5: Telefunken Werkstattbuch
Wolfgang Bauer


6X5: Original data sheet
Michael Schlör


Usage in Models 1= 1936?? ; 4= 1936? ; 22= 1936 ; 1= 1937?? ; 2= 1937? ; 11= 1937 ; 4= 1938?? ; 4= 1938? ; 18= 1938 ; 17= 1939?? ; 11= 1939? ; 17= 1939 ; 11= 1940?? ; 3= 1940? ; 15= 1940 ; 7= 1941?? ; 1= 1941? ; 17= 1941 ; 4= 1942?? ; 6= 1942? ; 1= 1942 ; 2= 1943? ; 3= 1943 ; 2= 1944 ; 2= 1945?? ; 4= 1945? ; 14= 1945 ; 7= 1946?? ; 10= 1946? ; 20= 1946 ; 6= 1947?? ; 12= 1947? ; 18= 1947 ; 10= 1948?? ; 9= 1948? ; 28= 1948 ; 5= 1949?? ; 7= 1949? ; 33= 1949 ; 36= 1950?? ; 13= 1950? ; 25= 1950 ; 6= 1951?? ; 16= 1951? ; 22= 1951 ; 10= 1952?? ; 13= 1952? ; 10= 1952 ; 5= 1953?? ; 6= 1953? ; 6= 1953 ; 2= 1954?? ; 9= 1954? ; 11= 1954 ; 6= 1955?? ; 2= 1955? ; 9= 1955 ; 1= 1956? ; 6= 1956 ; 1= 1957?? ; 2= 1957? ; 2= 1957 ; 7= 1958? ; 2= 1958 ; 1= 1959?? ; 4= 1959? ; 2= 1959 ; 2= 1960?? ; 1= 1960? ; 1= 1962?? ; 1= 1962 ; 1= 1963 ; 1= 1964?? ; 1= 1964? ; 1= 1966? ; 4= 9999
Number of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):617

6X5*Box


Forum contributions about this tube
6X5
Threads: 1 | Posts: 1
Hits: 1551     Replies: 0
6X5 (6X5)
Pedro Crespo-Gil
21.Jul.07
  1 RECTIFCADOR DE ONDA COMPLETA,DE ALTO VACIO

El tipo metalico 6X5 y el octal de vidrio 6x5-GT se utilizan en las fuentes de alimentacion
de receptores para automoviles y tipos de alimentacion con c.a.

6X5
End of forum contributions about this tube
