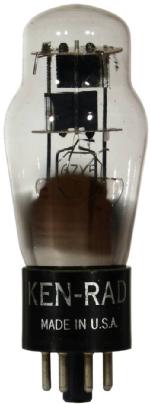

6ZY5G Info
Country:  United States of America (USA)      Brand:  Common type USA
  Tube type:  Full-Wave Vacuum Rectifier
Tube ID = 3312
previous  |  next
Identical to 6ZY5G
Similar Tubes EZ11 (Multiple differences or of other kind)
First Source (s) 25.May.1937 : Electron Tube Registration List
Predecessor Tubes 6Z3
Successor Tubes 7Y4

Base Octal (Int.Octal, IO) K8A, USA 1935 (Codex=Ud)
Was used by Radio/TV-reception etc.
Filament -: Indirect / -: Parallel / series AC/DC / If: 0.3 Ampere / Vf 6.3 Volts /
Tube prices 0 Tube prices (visible for members only)
Literature Essential Characteristics, GE 1973
Taschenbuch zum Röhren-Codex 1948/49

Collection JR
Jacob Roschy


RTT Schwandt
Günther Stabe


Sylvania Technical Manual
Peter Hoddow

Usage in Models   2= 1937? ; 8= 1937 ; 10= 1938?? ; 2= 1938? ; 10= 1938 ; 13= 1939?? ; 17= 1939 ; 4= 1940?? ; 1= 1940? ; 8= 1940 ; 5= 1941?? ; 3= 1941 ; 4= 1942?? ; 1= 1946?? ; 2= 1946? ; 1= 1947?? ; 2= 9999 ;
Number of Models with this tube   93
No further Information for

6ZY5G
