7548

Information - Help
ID = 6174



Tube type:  HEXODE   Text
Identical to 7548 = EM7548
First Source (s)
08.May.1961 : Electron Tube Registration List

Base Noval, B9A
Was used by Technology / Measurement
Filament Vf 6.3 Volts / If 0.7 Ampere / Indirect /
Description

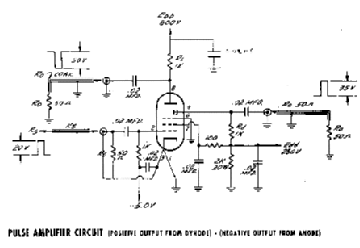

Secondary emission amplifier, intended for fast pulse generators and pulse amplifier services.

Transconductance of 26000 umhos at 300 V anode and 150 V dynode voltage.


Text in other languages (may differ)
Literature Essential Characteristics, GE 1973

  7548: Manufacturer's Literature
Emilio Ciardiello

7548: Herbert Flick
Herbert Flick


7548: Essential characteristics
Peter Hoddow


7548: Manufacturer's Literature
Emilio Ciardiello


7548*Box
