BSY78

Information - Help
ID = 46580

Country:
Germany
Brand: Intermetall Halbleiterwerk, Düsseldorf
Tube type:  Transistor   Audio Frequency
Identical to BSY78
Similar Tubes
Normally replaceable-slightly different:
  BC174 ; BC546

Base Wires
Description NPN silicon planar transistor intended as AF amplifier / switch.

Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
6 x 6 x 6 mm / 0.24 x 0.24 x 0.24 inch
Weight 1 g / 0.04 oz
Information source - - -
-- Collector info (Sammler)   KTT 1969/70
- - -
- - -

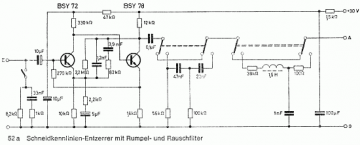

BSY78: ITT Schaltbeispiele 1967 Nr.52a
Günther Stabe † 19.8.20

to18_67.gif BSY78: TVT 73
Günther Stabe † 19.8.20
