EA52

Information - Help
ID = 19272

Country:
Great Britain (UK)
Brand: Mullard Radio Valve Co. Ltd.;
Tube type:  Signal Diode - one single system   UHF
Identical to EA52 = 6923
First Source (s)
Jun.1956 : - - Manufacturers Literature
Was used by Technology / Measurement
Filament Vf 6.3 Volts / If 0.3 Ampere / Indirect / Specified voltage AND current AC/DC
Description

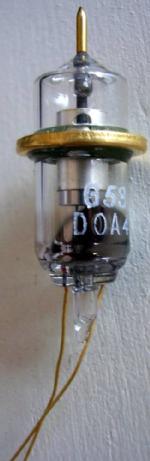

Disc Seal Diode for use as a measurement diode at f<1000MHz. Capacitance a-k <0.5pF. Maximum current 0.3mA mean, 5mA peak. Peak voltage <1kV.

Philips and related manufacturers.


Tube prices 1 Tube prices (visible for members only)
Information source - - Manufacturers Literature
ea52.png EA52: Lorenz Empfänger-Röhren , 9. Auflage
Anonymous 54 Collector
EA52: Lorenz Empfänger-Röhren , 9. Auflage
Anonymous 54 Collector
More ...
Usage in Models 1= 1956?? ; 1= 1957? ; 1= 1958? ; 1= 1959? ; 2= 1960?? ; 1= 1960? ; 1= 1961?? ; 1= 1962? ; 1= 1963 ; 1= 1964 ; 1= 1965? ; 4= 1965 ; 1= 1966 ; 2= 1967?? ; 1= 1967 ; 1= 1970?? ; 1= 1970? ; 1= 1976
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):23
