EC360

Information - Help
ID = 19010

Country:
Germany
Brand: Röhrenwerk Mühlhausen, VEB (Ostd.)
Developer: Werk für Fernmeldewesen (OSW, HF, WF) Berlin, VEB, RFT (Ostd.)
Tube type:  Triode, vacuum   Power-supply
Identical to EC360
Base Octal (Int.Octal, IO) K8A, USA 1935
Filament Vf 12.6 Volts / If 0.95 Ampere / Indirect / Specified voltage AC/DC
Description Enthält 2 Heizfäden, die parallel oder in Reihe zu schalten sind.
Heizfäden parallel: 6,3V / 1,9A; in Reihe 12,6V / 0,95A.

Anwendungen wie 6080 / 6AS7 _ [JR]
Weight 40 g / 1.41 oz
Tube prices 5 Tube prices (visible for members only)
Information source

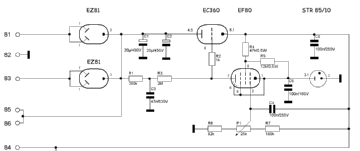

EC360: Netzteil SO 82
Hans-Peter Fritzwanker
ec360.png EC360: Röhrentaschenbuch VT 1962
Jörg Kulbe

Just Qvigstad 		ec360_kennl1.png
EC360: Radio Fernseh Elekronik
Mario Spitzer
More ...
Usage in Models 1= 1961? ; 1= 1962? ; 1= 1962 ; 2= 1963 ; 3= 1964 ; 1= 1965?? ; 1= 1965? ; 1= 1966? ; 1= 1967?? ; 1= 1968? ; 2= 1970??
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):15
