ECC189

Information - Help
ID = 18592

Country:
Europe
Brand: Common type Europe tube/semicond.
Tube type:  Double Triode
Identical to ECC189 = 6ES8
Similar Tubes
Normally replaceable-slightly different:
  6T29
Other class quality (otherwise equal):
  CV5331
Heater different:
  5ES8
First Source (s)
Apr.1963 : Funkschau (FS) # 8

Base Noval, B9A
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.365 Ampere / Indirect / Parallel, (AC/DC) /
Description

Twin Triode, RCA 6ES8/EC189, Unterschied zu 5ES8/YCC189: Uf(5ES8/YCC189)=5.6V und If=0.45A


Text in other languages (may differ)
Tube prices 1 Tube prices (visible for members only)

  ECC189: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

ECC189
Anonymous 413 Collector

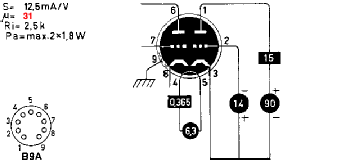

ECC189: RTT 1964 (Franzis) 10. Auflage
Martin Renz


ECC189: RCA Tube Manual
Peter Hoddow


Usage in Models 1= 1955 ; 1= 1957? ; 1= 1958?? ; 1= 1959?? ; 1= 1959? ; 3= 1960?? ; 1= 1961? ; 4= 1962 ; 1= 1963? ; 5= 1963 ; 2= 1964 ; 9= 1965?? ; 2= 1965? ; 2= 1965 ; 1= 1966?? ; 2= 1966 ; 2= 1967?? ; 1= 1967? ; 1= 1967 ; 2= 1968?? ; 1= 1968 ; 1= 1974 ; 1= 1980??

Number of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):46
