EL11 Info
Country:  Europe      Brand:  Common type Europe
  Developer:  Telefunken Deutschland (TFK)
  Tube type:  PENTODE   Power/Output
Tube ID = 579
previous  |  next
Identical to EL11 = AV1037
Similar Tubes EL3N (other base)   6M6G (other base)   EL33 (other base)   PL33 (Other base and other base diagram)
First Series   Jul.1938 Tube leaflet collection E.Erb Analysis by original leaflets (V7)
First Source (s) 15.Jul.1938 : Funk, Die Zeitschrift des Funkwesens 1938 #14
Predecessor Tubes AL4
Successor Tubes 1939 EL41   EL171   ECL11

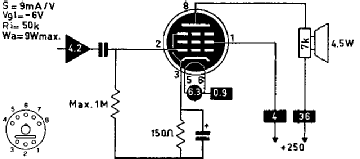

Base German Steel Y8A, 1938 (Codex=Rdo)
Was used by Radio/TV-reception etc.
Filament -: Indirect / -: Parallel, (AC/DC) / If: 0.9 Ampere / Vf 6.3 Volts /
Description In the German "steel" or all-metal tube series output- and rectifier-tubes were usually made as glas tubes as before. Hence, with exception of its Y8A "steel-tube" base, the EL11 is fully identical with the EL3N of the Philips red series from 1936. Telefunken sold this tube also as beam-power-tetrode, otherwise it was made as a true pentode only
[Jacob Roschÿ, 7 Feb 2003]
Text in other languages (may differ)
Tube prices 9 Tube prices (visible for members only)
Literature Taschenbuch zum Röhren-Codex 1948/49

  Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus
WR
Werner Raacke


Variants
Telefunken Werkstattbuch
Wolfgang Bauer


Lorenz Empfänger-Röhren , 9. Auflage
Michael Sigmund

Usage in Models   1= 1938?? ; 1= 1938? ; 21= 1938 ; 9= 1939? ; 102= 1939 ; 4= 1940?? ; 1= 1940? ; 42= 1940 ; 1= 1941?? ; 2= 1941? ; 18= 1941 ; 1= 1942?? ; 13= 1942 ; 1= 1943?? ; 1= 1943? ; 5= 1943 ; 4= 1944 ; 1= 1945? ; 1= 1945 ; 1= 1946?? ; 1= 1946? ; 14= 1946 ; 2= 1947? ; 9= 1947 ; 2= 1948?? ; 1= 1948? ; 11= 1948 ; 2= 1949? ; 25= 1949 ; 8= 1950?? ; 5= 1950? ; 90= 1950 ; 3= 1951?? ; 1= 1951? ; 64= 1951 ; 1= 1952?? ;
Number of Models with this tube   552

  Variants


FB
Frank Blöhbaum
EL11*Tetrode

Außer als normale Pentode wurde die EL11 auch als Beam Power Tetrode gefertigt, zuerst von Telefunken mit Strahlbündel- Blechblende wie die 6V6, später mit nur auf zwei Stäbe abgemagertem "Bremsgitter". In dieser Version wurde sie auch besonders von RFT- Betrieben der DDR geliefert.

05.Feb.2007 Jacob Roschy

Further Information for

EL11

EL11 (EL11)  (22.08.2008) Karl Reiter Clicks: 425     Replies: 2
Hallo liebe Gemeinde, ich habe heute eine Frage an die Röhren-Gurus : Ich bearbeite grade einen Radione 540W aus 1940. Dieses Gerät beinhaltet eine EL11, an deren Platz befindet sich aber eine "selbstgestrickte" EL11 Leider ist kein Aufdruck mehr zu lesen, nur die bekannte ital. Plakette "esonero tasse radio ...." Hat wer eine Ahnung, was das für eine Röhre ist ? Danke  für evtl. Hilfe ! Karl Reiter
More ...

EL11 (EL11)  (25.03.2006) Marc Goeritz Clicks: 790     Replies: 1
Hallo Ich habe eine Frage zur Kolbenform der EL11. Auf einem der Photos ist ganz klein Valvo (zylindrisch) bzw. Telefunken (bauchig) vermerkt. Dazu meine Frage. Ist die Kolbenform vom Hersteller oder vom Baujahr abhängig? Mit Freundlichen Grüßen Marc Goeritz
More ...
