ГУ-50gu-50

Information - Help
ID = 6375

Country:
Soviet Union
Brand: Common type USSR (SU) tube/semicond.
Tube type:  Vacuum Pentode   Power/Output
Identical to ГУ-50
Similar Tubes
Other shape (e.g. bulb type):
  LS50

Base OTHER TUBEBASE in general (Codex=Er)
Filament Vf 12.6 Volts / If 0.765 Ampere / Indirect / Parallel, (AC/DC) /
Description gu-50 = SRS552N ~ LS50: RF Oscillator - Power Amplifier Pentode. Was made in the UdSSR for the LS50.
Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
45 x 94 x mm / 1.77 x 3.70 x inch
Weight 75 g / 2.65 oz
Tube prices 3 Tube prices (visible for members only)


ГУ-50: Sammlung Iven Müller
Iven Müller


ГУ-50
Volker MARTIN

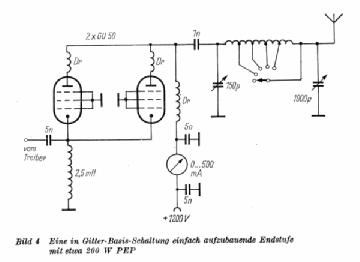

ГУ-50: Radio, Nr. 9; 1961
Anonymous 15 Collector


Usage in Models 1= 1949?? ; 1= 1950 ; 1= 1956?? ; 1= 1958? ; 1= 1960?? ; 1= 1960 ; 1= 1964?? ; 3= 1966?? ; 1= 1969?? ; 1= 1973 ; 2= 1974 ; 1= 1999

Number of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):15
