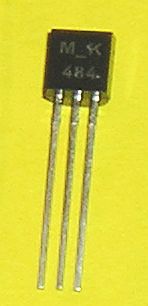

MK484

Information - Help
ID = 41509

Country:
United States of America (USA)
Brand: Common type USA tube/semicond.
Tube type:  IC - Integrated Circuit   RF/IF-Stage
Identical to MK484
Similar Tubes
Normally replaceable-slightly different:
  LA1050 ; TA7642
Other base:
  ZN414

Base Wires
Description

Monolithic integrated circuit one chip radio solution; high sensitivity and high quality AM radio is possible with very few external components.
Used as an AM IF amplifier it will be possible to build a shortwave superhet :-) -


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
5 x 5 x 4 mm / 0.20 x 0.20 x 0.16 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature   Rapid Electronics / Mostek

MK484: Rapid Electronics Ltd.
Günther Stabe † 19.8.20
    More ...
mk484_s_1.gif MK484: Rapid Electronics
Günther Stabe † 19.8.20

Usage in Models 1= 1980?? ; 1= 1987?? ; 1= 1995?? ; 1= 2004

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):4
