PCF802

Information - Help
ID = 3448



Tube type:  Triode-Pentode
Identical to PCF802 = 9JW8
Similar Tubes
Normally replaceable-slightly different:
  9TP16
Heater different:
  4JW8 ; 5JW8 ; 6JW8 ; 6LX8 ; ECF802 ; XCF802
First year 1962 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
Mar.1962 : Funkschau # 5

Base Noval, 9 pin miniature (USA pico-9) B9A
Filament Vf 9 Volts / If 0.3 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Description Designed for TV use in line oscillator circuits.
Text in other languages (may differ)
Tube prices 8 Tube prices (visible for members only)

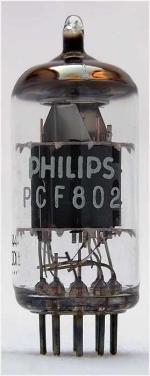

PCF802: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †

no55_2.png PCF802: RTT 1974 (Franzis) 13. Auflage
Martin Renz


Just Qvigstad
PCF802: Telefunken Röhrenhandbuch
Wolfgang Bauer

More ...
Usage in Models 1= 1961? ; 1= 1961 ; 5= 1962?? ; 4= 1962? ; 27= 1962 ; 14= 1963?? ; 21= 1963? ; 58= 1963 ; 20= 1964?? ; 6= 1964? ; 93= 1964 ; 33= 1965?? ; 27= 1965? ; 92= 1965 ; 25= 1966?? ; 28= 1966? ; 100= 1966 ; 18= 1967?? ; 20= 1967? ; 110= 1967 ; 28= 1968?? ; 52= 1968? ; 105= 1968 ; 36= 1969?? ; 74= 1969? ; 157= 1969 ; 51= 1970?? ; 23= 1970? ; 101= 1970 ; 9= 1971?? ; 24= 1971? ; 59= 1971 ; 14= 1972?? ; 13= 1972? ; 48= 1972 ; 3= 1973?? ; 14= 1973? ; 27= 1973 ; 3= 1974?? ; 8= 1974? ; 12= 1974 ; 5= 1975?? ; 1= 1975? ; 13= 1975 ; 1= 1976 ; 8= 1977? ; 3= 1977 ; 1= 1978? ; 2= 1978

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1598
