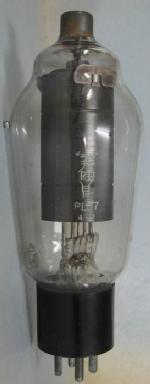

PL17

Information - Help
ID = 19042

Country:
Europe
Brand:
Developer: General Electric Co. (GE); Bridgeport CT, Syracuse NY
Tube type:  Thyratron
Identical to PL17 = 5557 = XG5-500 = FG17

Base UX-Base (4 Pins (2 thick, USA 1924, UX) Top contact with a cap.
Was used by Industrial
Filament Vf 2.5 Volts / If 5 Ampere / Direct
Description

This tube is a negative control mercury vapor thyratron for use where it is desired to actuate the tube with a change in negative grid voltage. It requires relatively little grid power and is suitablee for use in relay circuits where current flow is desired in the absence of grid exitation.


Text in other languages (may differ)
Tube prices 3 Tube prices (visible for members only)
Information source Tube Lore (II)   p. 90
Babani, International Radio Tube Encyclopaedia   p. 306 &307
Universal Vade-Mecum, Electron Valves and Semiconductor Devices

pl17_so.png PL17: Valvo Röhrentaschenbuch 1957
Anonymous 10 Collector

More ...

Just Qvigstad
PL17: Valvo Röhrentaschenbuch 1957
Anonymous 10 Collector

More ...

Collection of



PL17
