TAA141

Information - Help
ID = 34061

Country:
Germany
Brand: Siemens; D (S.& Halske / S. Electrogeräte)
Tube type:  IC - Integrated Circuit   Audio Frequency
Identical to TAA141 = TAA263
Similar Tubes
Other shape (e.g. bulb type):
  TAA131
Different maximum ratings:
  OM200
First Source (s)
Mar.1966 : -- Collector info (Sammler)

Base Wires
Filament Solid State /

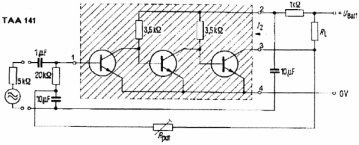

Description Aufbau/internal: IC (3 Trans., 2 Widerst.);
Form/Case: TO-72;
Typ/Content: 3-stufiger direktgekoppelter NF-Verstärker;
Daten/electr.data: U: 6 V; Leistungsverstärkung 77 db; Ausgangsleistung: 10 mW; Rauschzahl: 5 db; Iq: 25 mA; tmin: -20 °C; tmax: 100 °C;
Austauschtyp/similar to: TAA263; anderes Gehäuse: OM200, TAA131;
Anschlüsse/Connections: 1=IN, 2= (+), 3=OUT, 4=(-).
