UF41

Information - Help
ID = 343

Country:
Europe
Brand: Common type Europe tube/semicond.
Developer: Philips; Eindhoven (tubes international!); Miniwatt
Tube type:  Vacuum Pentode   RF/IF-Stage   Controlling (mu)
Identical to UF41 = 12AC5 = HF121 = 121VP = MUF41 = W142
First year 1947 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
Oct.1947 : Funkschau Heft 10; 1947
Jul.1946 : Daten und Schaltungen moderner ... Röhren; Philips # 3a
Predecessor Tubes UF21   UF9   UF5
Successor Tubes 1954   UF89

Base Rimlock base B8A (Codex=Wh)
Filament Vf 12.6 Volts / If 0.1 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Tube prices 2 Tube prices (visible for members only)

UF41: Mia raccolta schemi.
Pier Antonio Aluffi

uf41_so.png UF41: rtt
Anonymous 10 Collector

More ...

Just Qvigstad
UF41: Röhren Dokumente Franzis Verlag
Albrecht Schwaderer

More ...
Usage in Models 3= 1947?? ; 1= 1947? ; 12= 1947 ; 2= 1948?? ; 4= 1948? ; 7= 1948 ; 13= 1949?? ; 8= 1949? ; 38= 1949 ; 68= 1950?? ; 32= 1950? ; 72= 1950 ; 14= 1951?? ; 35= 1951? ; 119= 1951 ; 32= 1952?? ; 46= 1952? ; 119= 1952 ; 27= 1953?? ; 42= 1953? ; 105= 1953 ; 24= 1954?? ; 18= 1954? ; 99= 1954 ; 59= 1955?? ; 32= 1955? ; 98= 1955 ; 18= 1956?? ; 11= 1956? ; 39= 1956 ; 8= 1957?? ; 11= 1957? ; 27= 1957 ; 6= 1958?? ; 7= 1958? ; 14= 1958 ; 2= 1959?? ; 1= 1959? ; 2= 1959 ; 4= 1960?? ; 3= 1960 ; 2= 1961?? ; 1= 1961 ; 1= 1962?? ; 2= 1963? ; 2= 1965?? ; 3= 9999

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):1293


Collection of



UF41


Forum contributions about this tube
UF41
Threads: 1 | Posts: 3
Hits: 4409     Replies: 2
UF41
Júlio Branco
26.Jul.05
  1

Dear friends of the radio

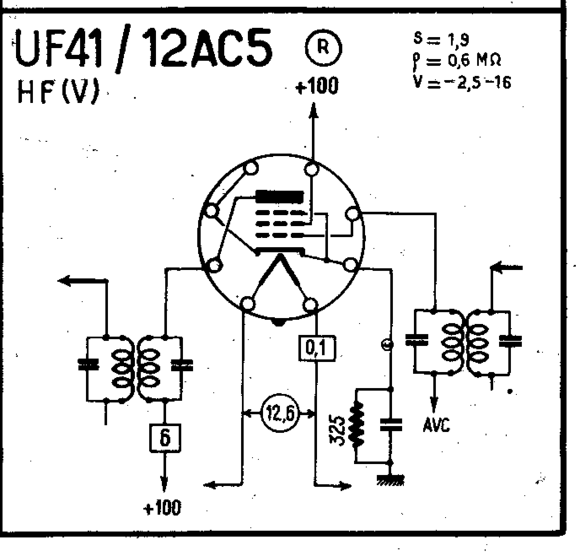

This valve can be substituted by the valve 12AC5, according to outline that I enclose:
