W-K Electric of Kenosha

The Wisconsin Historical Society (WHS) website reports that Martin Winther incorporated the Winther Motor and Truck Company in December 1916 in Kenosha, Wisconsin, with his younger brother Anthony Winther working for him. The company shipped 500 Winther automobiles to Australia in 1917, but with the onset of World War I the company began making trucks and in 1918 received a contract from the U.S. Army to assemble four-wheel drive trucks. Following the war, Winther resumed production of Winther automobiles. In 1923 Martin Winther re-incorporated the company in Kenosha as the Winther Motor Company, and began using the trade name “Winther-Kenosha” for most of its products. The company was reorganized again in 1926 as the Kenosha Fire Engine and Truck Company, and in 1927 the company was sold. The Winther brothers went on with their careers in business. The WHS notes that although Martin and Anthony only attended school through the eighth grade, the two of them (separately or together) were granted patents for almost 300 car- and truck-related mechanical devices, including the first successful air conditioning system for Pullman railroad cars. See the WHS website for the full story of the Winther brothers’ career.

Meanwhile, the W-K Electric Company of Kenosha advertised the “new Five Tube Oriole Receiver” in Radio Industry magazine in June, 1925, November 1925, and March 1926. See figure 1 for the June, 1925 advertisement.

W-K Electric

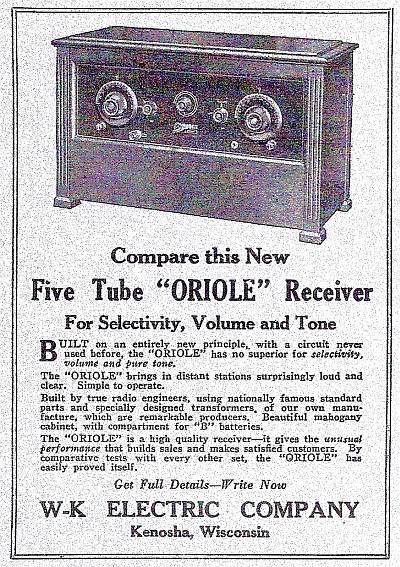

Figure 1 – W-K Electric ad, Radio Industry, June 1925

W-K advertised the model 71 “The Warwick”, the model 75 “The Canterbury”, and “The Mayfair” receivers in Radio Retailing in October 1926 and Radio Broadcast and Popular Radio in November 1926. See figure 2 for the November, 1926, Radio Broadcast ad.

Figure 2 – Radio Broadcast, November 1926

Was there a connection between the Winther brothers of the Winther Motor Company of Kenosha and W-K Electric of Kenosha? The fact that the Winther brothers had adopted the Winther-Kenosha trade name – which one can imagine being abbreviated “W-K” – suggests a connection. But the clincher is patent number 1,700,393 for “Radio Frequency Amplification Circuits” issued to Anthony Winther of Kenosha, listed as the inventor. The patent application was filed on May 13, 1925, and the patent was granted on January 29, 1929. By that time the Winthers had sold the Winther company, and the patent was assigned to the All-American Mohawk Company of Chicago, Illinois, suggesting that Anthony Winther had sold the patent to Mohawk by that date.

Figure 3 – Winther Patent Title and Diagram

See figure 3 for the title and diagram from the Winther patent.

The Winther patent was for a vacuum tube radio frequency amplifier stage circuit that is now known as the “cathode follower”. In what was then the customary configuration, the amplifier stage would use plate loading, meaning that the ouput of the stage was produced across a load (e.g. either a transformer or resistor depending on the interstage coupling being used) in the tube’s plate circuit, i.e. between the plate and ground. In Winther’s design, the output load is between the tube’s cathode (which was the filament in tubes such as the 01A) and ground, and Winther’s schematic shows transformer coupled RF amplifier stages with the transformer primaries connected between the cathode and ground. The benefit of this approach, according to Winther, was improved efficiency and selectivity. (The term “cathode follower” derives from the fact that the output signal taken across a cathode load is in phase with, and hence “follows”, the input signal, while the output signal taken across a plate load would be 180 degrees out of phase with the input signal.)

Antique Radio Classified, December 1989, carried a photograph of an Oriole model 7B receiver submitted by Robert Gordon of Muskego, Wisconsin, shown with permission here as figure 4.

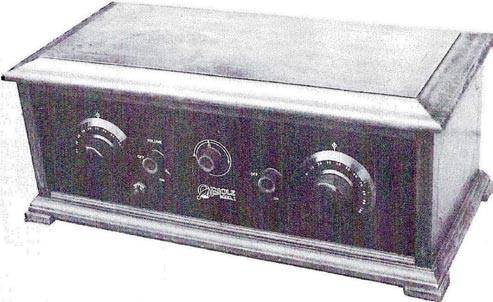

Figure 4: W-K Electric "Oriole" 7B

In his description of the set, Mr. Gordon noted the use of the cathode follower configuration in the two RF amplifier stages. His 7B schematic is reproduced here as figure 5.

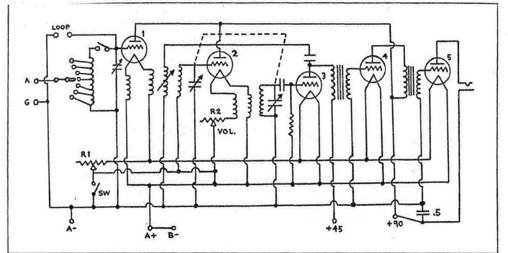

Figure 5 – Oriole 7B Schematic

Note the transformer coupling between RF stages in the filament (i.e. cathode) circuit consistent with the Winther patent diagram (figure 3, page 10 above).

The 1925 ads for the Five Tube Oriole Receiver (see figure 1, page 9 above) proclaim that “built on an entirely new principle, with a circuit never used before, the Oriole has no superior for selectivity, volume, and pure tone”. The “Five Tube Oriole Receiver” in the ads appears to be the Model 7 (a 7B with a taller cabinet with a B battery compartment).

The 1926 ads for the models 70, 75 and 78 tout the sets’ “amazing selectivity, delightful tone, and exceptional volume” pointing to their use of the “Trinum Circuit”. In December, 1926, Radio News magazine awarded the “Oriole Trinum” radio receiver (which appears to be the model 71 “Warwick”) its Radio New Laboratories Certificate of Merit.

Figure 8 on the page 14 shows John Stroebel’s model 200 Oriole receiver. This set has an inside nameplate that says “Oriole Receiver Model 200, Serial 2164. Warning: The Trinum Circuit used on this receiver is patented. Any infringement will be prosecuted. W-K Electric Co., Kenosha, WI”. No patent number is cited, suggesting that when the radio was produced the patent application had been filed but not yet granted, which is consistent with the time frame for the Winther patent.

Note that neither the Winther patent nor the 1925 ads mention the name “Trinum” for the circuit, but it seems safe to conclude that the “Trinum Circuit” referred to the cathode follower configuration described in the Winther patent and that W-K Electric was operated in Kenosha by Anthony and possibly Martin Winther in parallel with or as part of their Winther Motor Company.

The table on the next page (taken from the 2010 edition of the Battery Set Compendium to be released in May or June 2010) lists receivers manufactured by W-K Electric according to the best information I have found so far. I believe the first two receivers, Models 5 and 6, were manufactured in 1924 – perhaps a stretch given that the earliest reference to them was in the portion of the 1925 Radio News Radio Set Directory published in the October 1925 issue. The last receivers are listed as 1927 models. Dale Boyce mentioned a booklet describing 1927-1928 models, but it seems most likely that W-K Electric ceased production at about the same time as the sale of Winthers’ Kenosha Fire Engine and Truck Company in 1927.

Table: Radios Manufactured by W-K Electric (Battery Set Compendium 2010 edition):

Note EE, Radiomuseum: For 1924 we show now also Oriole 5 with 4 tubes and an Oriole 6 with 4 tubes. But I'm not sure if these new models are not doublets and we should put something into the notes. Also the tubes UX201A are in conflict (1925). If something turns up in a book, we have to show it - even if it has not been seen or was not made - to be really a reference work and not merely a catalogue. The Orion 90 might be the 90 Junior.

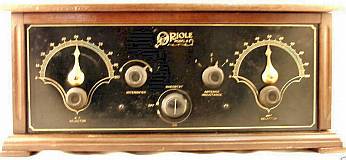

Figures 6 and 7 show an Oriole Model 8 receiver, a four tube set, dating from about 1925.

Figure 6: Oriole Model 8 receiver Figure 7: Oriole 8 inside



Figure 8 - John Stroebel’s 1927 Oriole Trinum
Model 200
Figure 9 - 1927 Oriole “Junior” Trinum
Model 90

Figure 10 – Oriole “junior” Model 90 Chassis

Figures 9 and 10 above show an Oriole Model 90 “Junior”, a five tube receiver. Figure 11 below shows the chassis of the five tube Oriole Model 7B discussed above – note the similarity of the 7B to the 90.

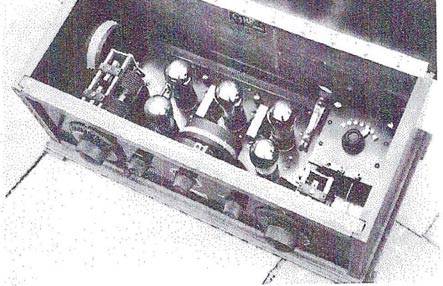

Figure 11 – Oriole 7B Chassis

A new design element on the 90’s front panel is the use of the small escutcheons around the tuning dials. Compare with the somewhat more elaborate escutcheon work on the Model 200, figure 8 above.

Any information adding to or correcting the discussion of W-K Electric and their radios would be most welcome!

“The Oriole Model 7B”, Robert Gordon, Antique Radio Classified, December 1989, p.8, copyright 1989 by John V. Terrey. Information from the article, including the photo of the Oriole 7B and its schematic are reprinted with permission from Antique Radio Classified (antiqueradio.com), P.O. Box 2, Carlisle, MA 01741 USA.

John Stroebel provided photos of his Oriole 200, a copy of the patent, and the link to the WHS website. John noted that while he is currently living in Minneapolis his roots are in the Milwaukee area. He believes that his grandfather worked for W-K in the mid to late 20’s but lost his job in 1929 during the Great Depression.

Dale Boyce provided information about the W-K Electric Oriole sets in his collection.
