Europameister 325WL

Europameister 325WL; AEG Radios Allg. (ID = 102033) Radio

Europameister 325WL; AEG Radios Allg. (ID = 102034) Radio

Europameister 325WL; AEG Radios Allg. (ID = 102032) Radio

Europameister 325WL; AEG Radios Allg. (ID = 5901) Radio

Europameister 325WL; AEG Radios Allg. (ID = 812034) Radio
Europameister 325WL; AEG Radios Allg. (ID = 99624) Radio Europameister 325WL; AEG Radios Allg. (ID = 99625) Radio
Europameister 325WL; AEG Radios Allg. (ID = 99626) Radio Europameister 325WL; AEG Radios Allg. (ID = 99627) Radio
Europameister 325WL; AEG Radios Allg. (ID = 102046) Radio Europameister 325WL; AEG Radios Allg. (ID = 102047) Radio
Use red slider bar for more.
Europameister 325WL; AEG Radios Allg. (ID = 99624) Radio
AEG Radios Allg.: Europameister 325WL [Radio] ID = 99624 707x603
Select picture or schematic to display from thumbnails on the right and click for download.
For model Europameister 325WL, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AF3 AF7 AL1 AZ1
Main principle TRF with regeneration; 1 Special; 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Europameister 325WL - AEG Radios Allg.Elektricitäts-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 396 x 304 x 270 mm / 15.6 x 12 x 10.6 inch
Price in first year of sale 235.00 RM
Collectors' prices
Source of data Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

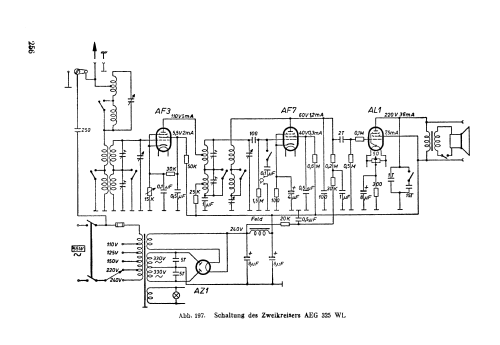

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from AEG (Radios) Allg.Elektricitäts-Ges.
Here you find 791 models, 673 with images and 398 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
