• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1988 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 203526

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / 2 x 1,5 / 3 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

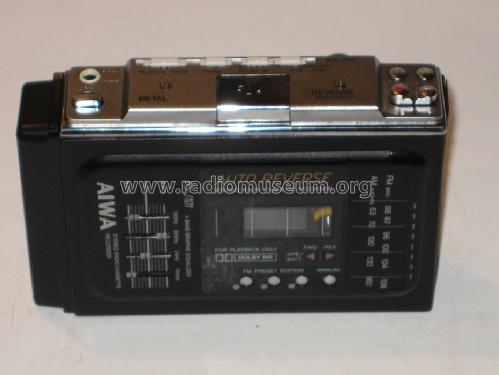

• Model: Stereo Radio Cassette Recorder HS-J101 - Aiwa Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 120 x 80 x 30 mm / 4.7 x 3.1 x 1.2 inch

• Notes
• Aiwa HS-J101, portable Radio-Cassette Stereo in "Walkman" style;
  3 FM preset stations, autoreverse, equalizer 100 Hz - 10 kHz,
  Record function, cassettes normal & metal (120 and 70 µs), Dolby NR,
  Jack 3,5 mm for an external microphone.
  Made in Singapore.

• Net weight (2.2 lb = 1 kg)
• 0.240 kg / 0 lb 8.5 oz (0.529 lb)

• Author
• Model page created by Jose Mayoral-Diaz. See "Data change" for further contributors.
