Eénkrings-tweelampsontvanger UN-11
Amroh NV (Radio Bulletin monthly), Muiden
- Country
- Netherlands
- Manufacturer / Brand
- Amroh NV (Radio Bulletin monthly), Muiden
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 225057

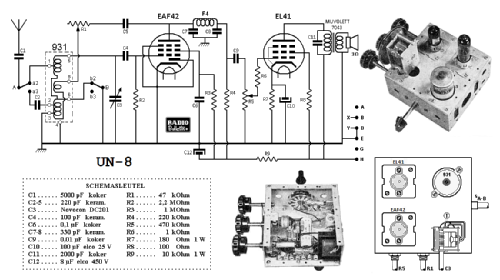

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- 1 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 4 W (unknown quality)
- from Radiomuseum.org
- Model: Eénkrings-tweelampsontvanger UN-11 - Amroh NV Radio Bulletin
- Shape
- Chassis only or for «building in»
- Notes
-
Receiver UN-11 can be powered by external power supply unit UN-1.
- Mentioned in

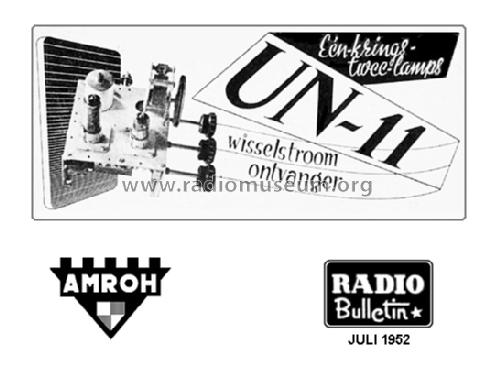

- Radio Bulletin (Juli 1952)
- Author
- Model page created by Rob Majoor. See "Data change" for further contributors.
