• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 71192
    • Brand: B&O

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 4 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org

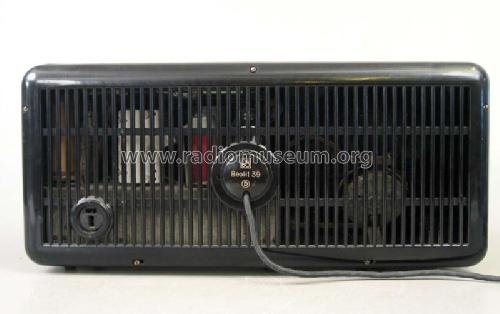

  • Model: Beolit 39 - Bang & Olufsen B&O; Struer
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 520 x 250 x 230 mm / 20.5 x 9.8 x 9.1 inch
  • Notes
  • LW: 157-400 kHz
    MW: 520-1500 kHz
    KW: 6-18 MHz

  • Price in first year of sale
  • 275.00 KR
  • External source of data
  • B&O Katalog (1943)
  • Author
  • Model page created by Hermann Jung. See "Data change" for further contributors.
