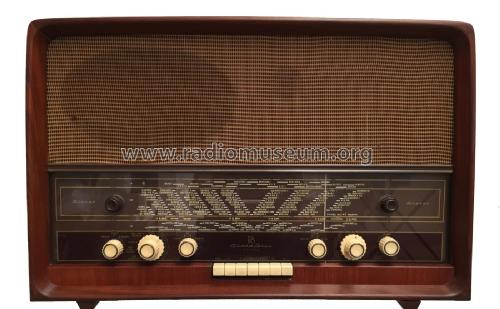

Grand Prix Stereo 606K; Bang & Olufsen B&O; (ID = 2304365) Radio
Bang & Olufsen B&O;: Grand Prix Stereo 606K [Radio] ID = 2304365 1400x867
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grand Prix Stereo 606K, Bang & Olufsen (B&O); Struer

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: PCC85 ECH81 EF89 EBF89 PM84 PF86 PF86 ECC83 PL84 PL84
Semiconductors (the count is only for transistors) RL247 RL247 E250C180
Main principle Superheterodyne (common); ZF/IF 444/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage AC/DC-set / 110; 125; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 9 W (unknown quality)
from Radiomuseum.org Model: Grand Prix Stereo 606K - Bang & Olufsen B&O; Struer
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 420 x 270 mm / 25.2 x 16.5 x 10.6 inch
Notes

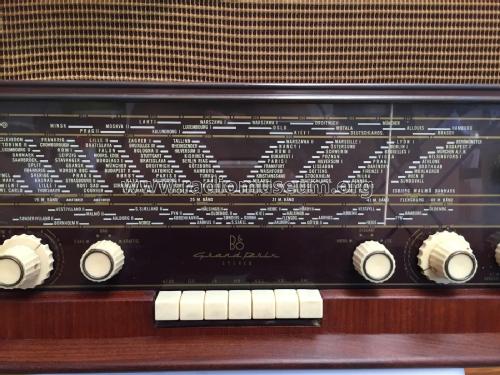

Back cover shows the designation Grand Prix 606, below the dial Grand Prix Stereo and the schematic reads Grand Prix 606K.

Price in first year of sale 1'095.00 DKK
Literature/Schematics (1) -- Schematic

Model page created by Emilio Alonso-Julian. See "Data change" for further contributors.
